RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System

Name: RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6555G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6555G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Y Axis Double Drive:

Support Dual-drive Output And Have Synchronous Protection Function

Laser Channel:

Laser Control:

Support PSO, PSV, PSP, FSP Laser Control Methods

Language:

Panel:

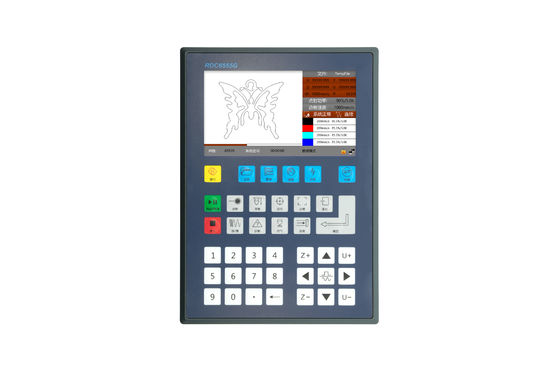

5” Color Screen + Keys And 7” Touch Screen Is Optional

Software:

LSWorks

Firmware:

Remote Upgrade Of Panel And Mainboard Program

Packaging Details:

360*300*250

Supply Ability:

100 sets/day

Highlight:

Precision CO2 Laser Cutting Controller

RDC6555G Cutting Controller

CO2 Laser Cutting Control System

Product Description

RUIDA RDC6555G The Ultimate Precision Cutting Controller For CO2 Laser Cutting Applications

Discroption of RDC6555G :

The RDC6555G, a film cutting control system independently crafted by Ruida Technology, excels in hardware stability and is equipped with diverse motion control schemes. It offers enhanced resistance to high voltage and electrostatic interference. This system features a user-friendly, 5-inch LCD-based human-machine interface, delivering a more robust operational experience.

Key Features:

1. Autonomous Dual Drive Control: Capable of operating independently with integrated control for dual drive systems.
2. High-Precision Pulse Width Control: Offers accuracy up to 0.1% for pulse width modulation.
3. Synchronous Error Alarm: Supports gantry dual drive synchronization error alarms and servo driver following error alarms.
4. Encoder Signal Detection: Features encoder signal detection for real-time position and speed monitoring.
5. Advanced Protection Functions: Includes absorption and blow functions, grating protection, and cover protection.

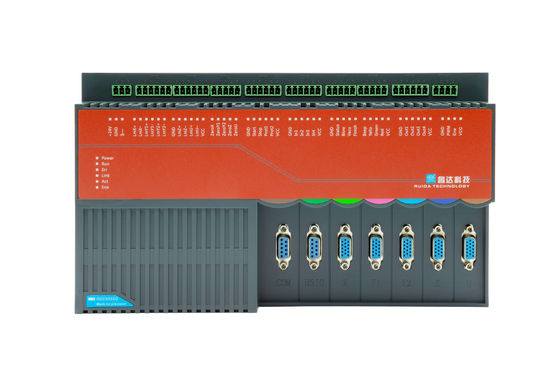

RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System 0

Software LSWorks(Free)

Support PLT,DXF,AI,DST and other file formats,disaplay and edit functions,support image file import and processing.

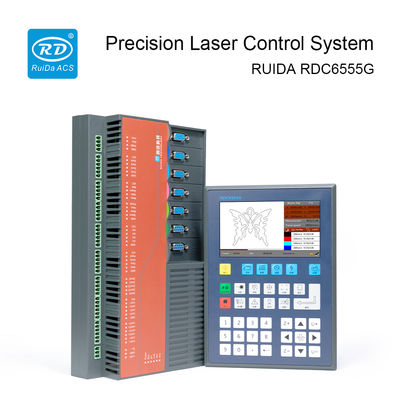

RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System 1

Technical Parameters:

Parameters	RDC6555G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive	Support dual-drive output and have synchronous protection function
Laser control	Support PSO, PSV, PSP, FSP laser control methods
Axis	5
Laser channel	1
Communication	Ethernet, USB
Panel	5” color screen + keys and 7” touch screen is optional
Feeding	Support roll to roll cutting
Cutting	Precision cutting of high molecular materials
Engraving	Support
Encryption	Support
Onboard clock	Support
Firmware	Support the remote upgrade of mainboard and panel program
Software	LSWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese
Size	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm

Application:

Suitable for precision cutting of non-metal thin film materials, ceramic and high molecular materials, including GDF film, peep-proof protection film, lens film, handwriting film, polarizing film, touch screen and flexible OLED, etc.

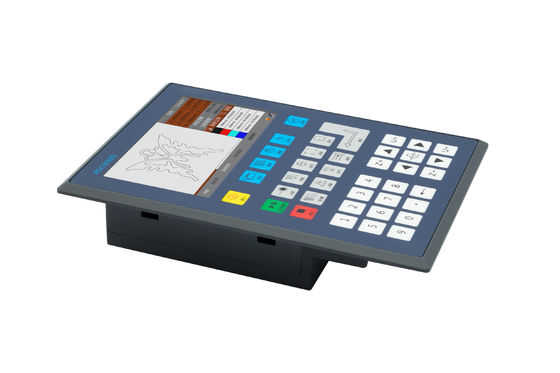

RUIDA Precision CO2 Laser Cutting Controller RDC6555G Cutting Control System 2
