RUIDA RDC6555G Precision Cutting Controller For CO2 Laser Cutting Machine

Name: RUIDA RDC6555G Precision Cutting Controller For CO2 Laser Cutting Machine
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6555G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDC6555G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Y Axis Double Drive:

Support Dual-drive Output And Have Synchronous Protection Function

Laser Channel:

Laser Control:

Support PSO, PSV, PSP, FSP Laser Control Methods

Communication:

Ethernet, USB

Panel:

5” Color Screen + Keys And 7” Touch Screen Is Optional

Language:

Feeding:

Upport Roll To Roll Cutting

Engraving:

Support

Cutting:

Precision Cutting Of High Molecular Materials

Packaging Details:

360*300*250

Supply Ability:

100 sets/day

Highlight:

RUIDA Precision Cutting Controller

Co2 Laser Cutting Machine Controller

Precision Co2 Laser Cutter Controller

Product Description

Ruida RDC6555G Advanced Precision Cutting Controller For CO2 Laser Cutting

Discroption of RDC6555G :

The RDC6555G precision cutting control system, independently developed by Ruida Technology, is designed for superior film cutting control. It boasts enhanced hardware stability, a wide array of motion control design schemes, and robust resistance to high voltage and electrostatic interference. This system features a user-friendly 5-inch LCD-based human-machine interface that offers a more intuitive operation and powerful functionality.

Key Product Features:

1. Autonomous Dual-Drive Control: Capable of standalone operation with integrated motion control for dual drives.
2. PSO Laser Control: Offers laser control with PSO (Phase-Locked Loop) function for stability.
3. Advanced Laser Control Algorithm: Features high-precision algorithms for full and half-cut operations.
4. Visual Positioning and Array Processing: Supports mark point visual positioning for cutting and array processing.
5. Precision Cutting Applications: Ideal for precise cutting of non-metal thin films, ceramics, and high molecular weight materials.

RUIDA RDC6555G Precision Cutting Controller For CO2 Laser Cutting Machine 0

Software LSWorks(Free)

Support PLT,DXF,AI,DST and other file formats,disaplay and edit functions,support image file import and processing.

RUIDA RDC6555G Precision Cutting Controller For CO2 Laser Cutting Machine 1

Technical Parameters:

Parameters	RDC6555G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Y axis double drive	Support dual-drive output and have synchronous protection function
Laser control	Support PSO, PSV, PSP, FSP laser control methods
Axis	5
Laser channel	1
Communication	Ethernet, USB

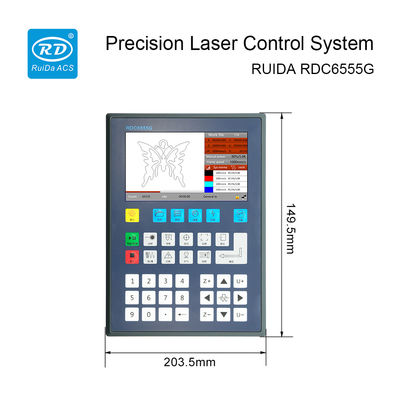

Panel	5” color screen + keys and 7” touch screen is optional
Feeding	Support roll to roll cutting
Cutting	Precision cutting of high molecular materials
Engraving	Support
Encryption	Support
Onboard clock	Support
Firmware	Support the remote upgrade of mainboard and panel program
Software	LSWorks
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

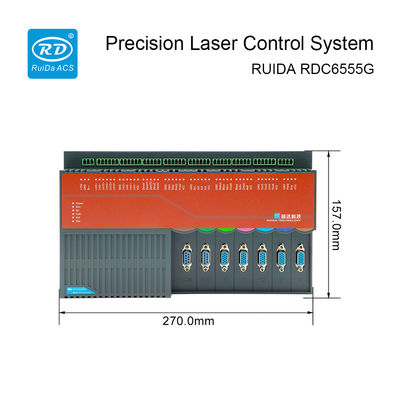

Size	Panel: L202mmW145mmH42.1mm Mainboard: L270mmW157mmH55mm

Why Choose the RDC6555G:

1.Advanced Dual-Drive Technology
2.Stability with PSO Function
3.High-Precision Cutting Capabilities
4.Versatility in Material Processing

RUIDA RDC6555G Precision Cutting Controller For CO2 Laser Cutting Machine 2
