LFS-ANM-T43-V2 Non Metal Laser Height Controller V2 Ruida Laser Controller

Name: LFS-ANM-T43-V2 Non Metal Laser Height Controller V2 Ruida Laser Controller
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: LFS-ANM-T43-V2
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	LFS-ANM-T43-V2
MOQ:	1
Price:	Negotiable, contact us
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, FCC, RoHB

Panel:

4.3'' Touch Screen

Communication:

Ethernet, RS232

Control Method:

Pulse

Motor:

Servo Motor And Stepping Motor

Control Output:

1MHz

Laser Cutting:

Non-metal Cutting

Sampling Frequency:

1000Hz

Speed:

300mm/s

Detection Distance:

±35mm

Dynamic Follow Accuracy:

≤0.1mm

Real-time Adjustment Of Focus:

Support

Focal Length Adjusts Step:

0.1mm

Packaging Details:

Carton

Highlight:

Non Metal Ruida Laser Controller

Non Metal Laser Height Controller

LFS-ANM-T43-V2 Laser Controller

Product Description

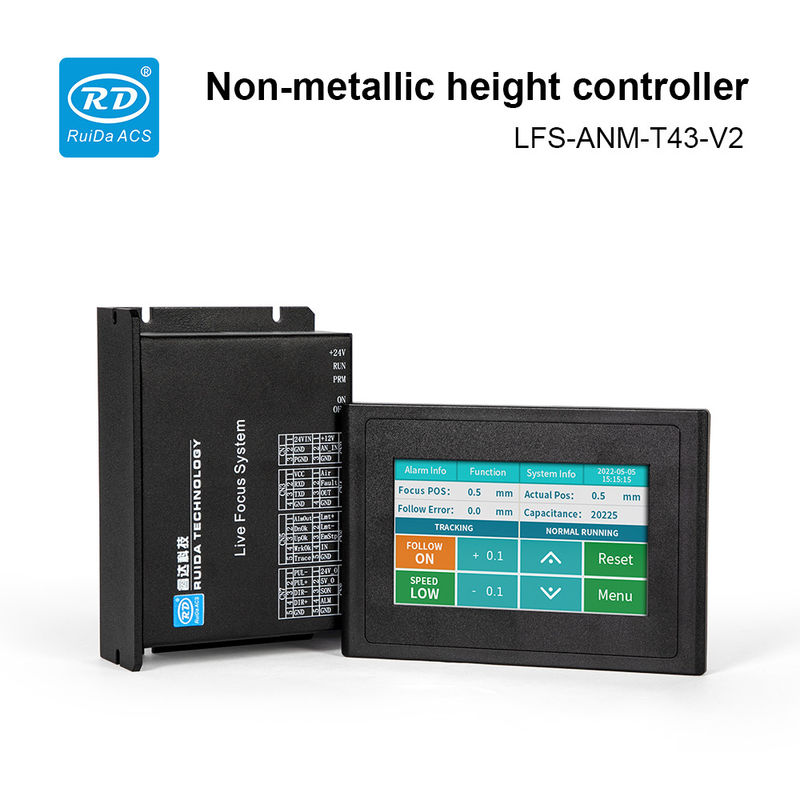

Ruida Controller LFS-ANM-T43-V2 Non-metal Height Controller V2

Description Of Ruida Controller LFS-ANM-T43-V2

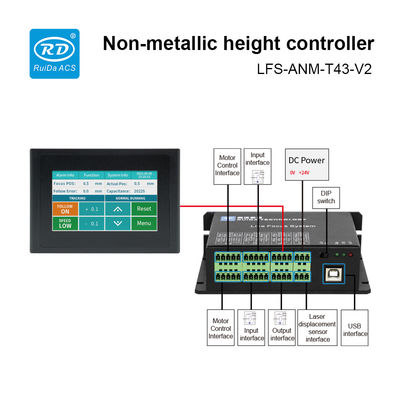

LFS-ANM-T43-V2 automatic height controller focuses on non-metal cutting developed by Shenzhen Ruida Technology Co., LTD. Equipped with 4.3” industrial TFT color touch screen, it can optimize the operation interface and pulse control method, display the status and data in real time, heighten the motion speed and response speed of the controller and realize the accurate automatic height control

Parameter	LFS-ANM-T43-V2
Panel	4.3” touch screen
Communication interface	Ethernet, RS232
Control method	Pulse
Motor	Servo motor and stepping motor
Control output	1MHz
Laser cutting	Non-metal cutting
Sampling frequency	1000Hz
Speed	300mm/s
Detection distance	±35mm
Dynamic follow accuracy	≤0.1mm
Real-time adjustment of focus	Support
Focal length adjusts step	0.1mm
Firmware	Online remote upgrade of U disk
Language	Chinese, English

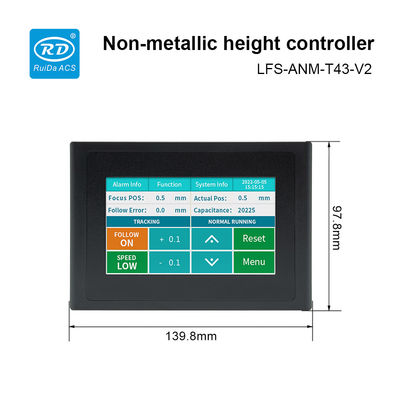

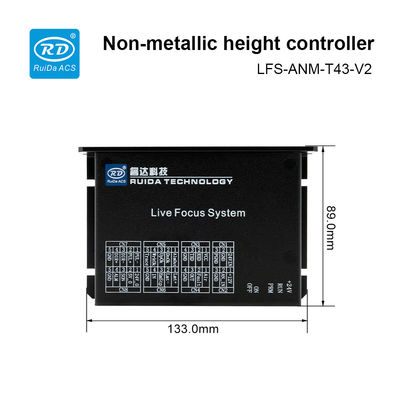

Size	Panel: L139.8mmW97.8mmH22.2mm Mainboard: L133mmW89mmH38mm

Key Function
(1)Automatic Z-Axis Adjustment: The system automatically adjusts the height of the laser head relative to the workpiece, ensuring optimal focus for cutting or engraving.
(2)Material Thickness Detection: It can detect variations in material thickness, allowing for consistent cutting quality across uneven surfaces.
Improved Cutting Quality: By maintaining the correct distance between the laser and the material, it enhances the precision and quality of the cuts, minimizing issues like burning or poor engraving.
(3)User-Friendly Operation: The system allows operators to set parameters easily, making it accessible for users with varying levels of experience.
(4)Safety Features: By preventing the laser head from crashing into the material, it protects both the machine and the operator.

LFS-ANM-T43-V2 Non Metal Laser Height Controller V2 Ruida Laser Controller 0

Application area

It mainly focuses on the non-metal curved cutting and engraving, such as curved and cylindrical engraving

Software MetalCute(Free)

Product Certificaion

Package List
