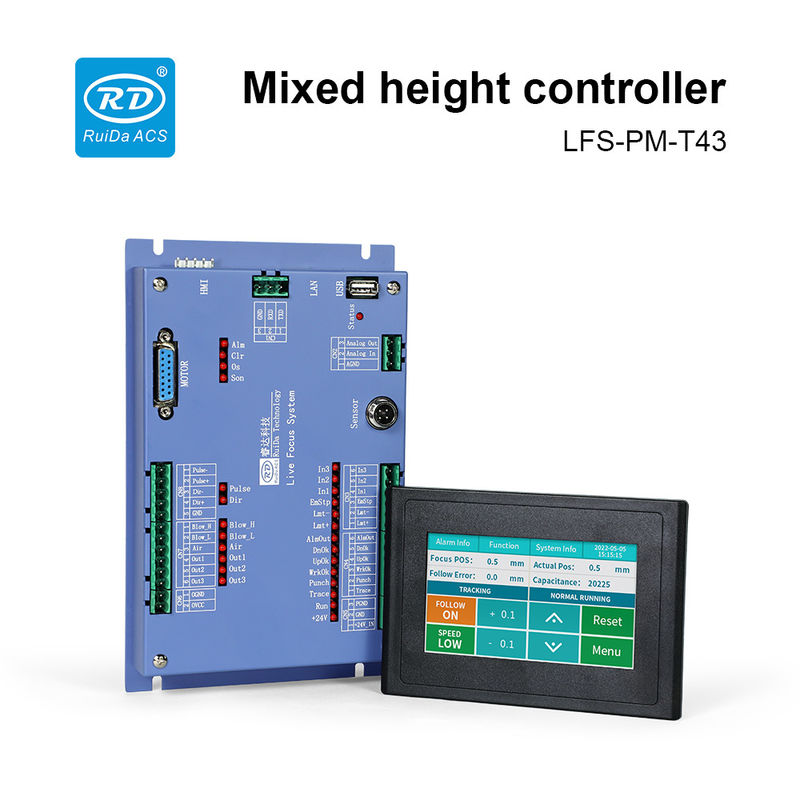

Ruida Metal Open Loop Capacitive Height Controller LFS-PM-T43 Automatic Height Controller

Ruida Controller LFS-PM-T43 Metal Open Loop Capacitive Height Controller

Description Of Ruida Controller LFS-PM-T43

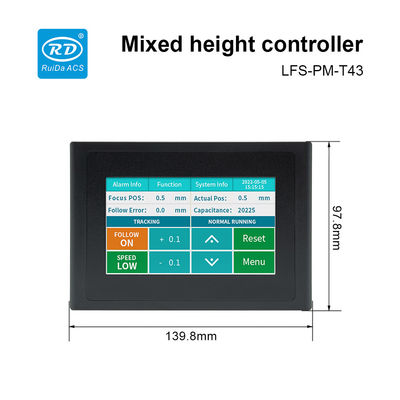

LFS-PM-T43 automatic height controller is specially used for the mixed metal and non-metal cutting developed by Shenzhen Ruida Technology Co., LTD. Equipped with 4.3” industrial TFT color touch screen with friendly operating interface, it can display the status and data in real time. Besides, it adopts a high performance amplifier and professional anti-interference design to greatly increase the speed of motion and response of the height controller and achieve the accurate automatic height control.



Key Function
(1)Capacitive Sensing Technology: This allows for precise automatic calibration of capacitance parameters, ensuring compatibility with various cutting heads. This technology enhances the system's adaptability to different materials and thicknesses.
(2)Protection Functions: The inclusion of collision alarms, limit protection, and servo alarms enhances safety during operation. These features help prevent accidents by alerting users to potential issues and stopping operations if necessary.
(3)Focus Position Detection: Online modification and real-time detection of the focus position (with a detection range from 0 to 9.9mm) ensure that the laser maintains optimal performance throughout the cutting process, adapting to material variations.
(4)Motion Status Display: Real-time monitoring of the cutting head's motion status and alarm prompts provide operators with immediate feedback on the system's performance, enabling quick responses to any issues.
(5)Customizable Settings: The ability to set various lifting heights and speeds allows for flexibility in cutting methods, making it easier to adapt to different materials and project requirements.
(6)Advanced Cutting Functions: Support for techniques such as step pierce, low voltage pierce, and frog functions in conjunction with the Ruida controller enhances cutting efficiency and versatility, allowing for more complex cutting tasks.


Application area

It focuses on metal and non-metal mixed cutting, widely applied in advertising industry.

Software MetalCute(Free)


Product Certification

Package List
