| Brand Name: | RUIDA |
| Model Number: | RDV6563FG-NET |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |
| Attribute | Value |
|---|---|
| Brand | RUIDA |
| Axis | 6 |
| Laser source | Fiber laser/CO2 laser/RF laser |
| Laser channel | 1 |
| Height control | loop-locked height control |
| Panel | 5.7'' color screen+keys |
| Encryption | Support |
| Cutting function | Mark point vision positioning metal and non-metal mixed cutting |
| Onboard clock | Support |
| Software | RDCutist, support punching, lead, bridge and micro connection |

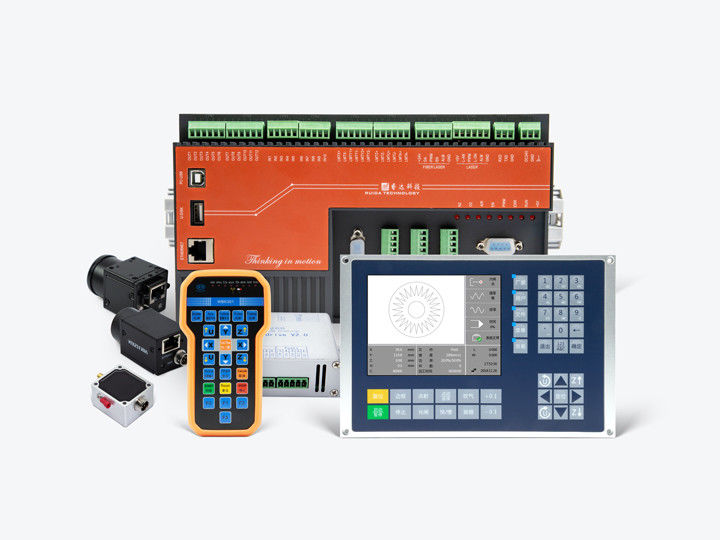

The RDV6563FG-NET by Ruida is a Mark point vision-guided, standalone fiber cutting control system. It employs capacitive sensing technology for the Z-axis height control, which includes a high-performance amplifier and is designed to counteract interference, significantly improving the motion and response speed of the height control.
Support PLT, DXF, AI and other file formats import, display and edit functions, support image file import and processing.
| Parameters | RDV6563FG-LITE |
|---|---|
| Laser source | Fiber laser/CO2 laser/RF laser |
| Height control | loop-locked height control |
| Axis | 6 |
| Laser channel | 1 |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 5.7" color screen+keys |
| Feeding | Support automatic feeding |
| Encryption | Support |
| Onboard clock | Support |
| Firmware | Remote upgrade of panel and mainboard program |
| Cutting function | Mark point vision positioning metal and non-metal mixed cutting |
| Engraving | Plane engraving |
| Camera | Cameras of 1.3 and 5 megapixels are available. Lens of 8~12mm are available |
| Software | RDCutist, support punching, lead, bridge and micro connection |
| Language | Simplified Chinese, traditional Chinese and English |

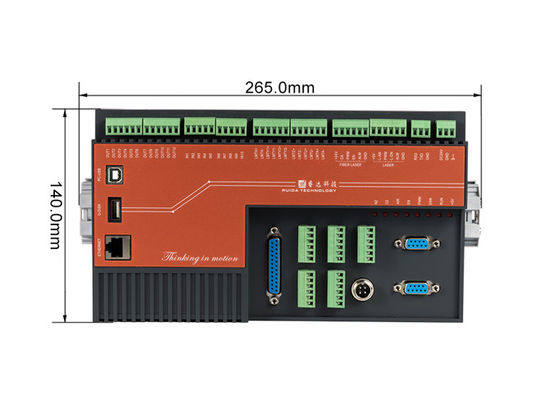

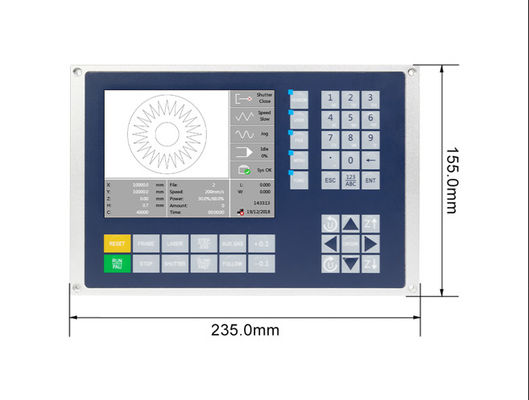

| Size | Panel: L235*W155*H33.5mm Mainboard:L308*W150*H78mm |
| Accessories | RD-APP, RD-WIFI, Automatic Typesetting Nesting Software |
Suitable for metal and non-metal cutting in sheet metal, auto parts, handicrafts and utensils industries.
