| Brand Name: | Ruida |
| Model Number: | RDD6584V-NET |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

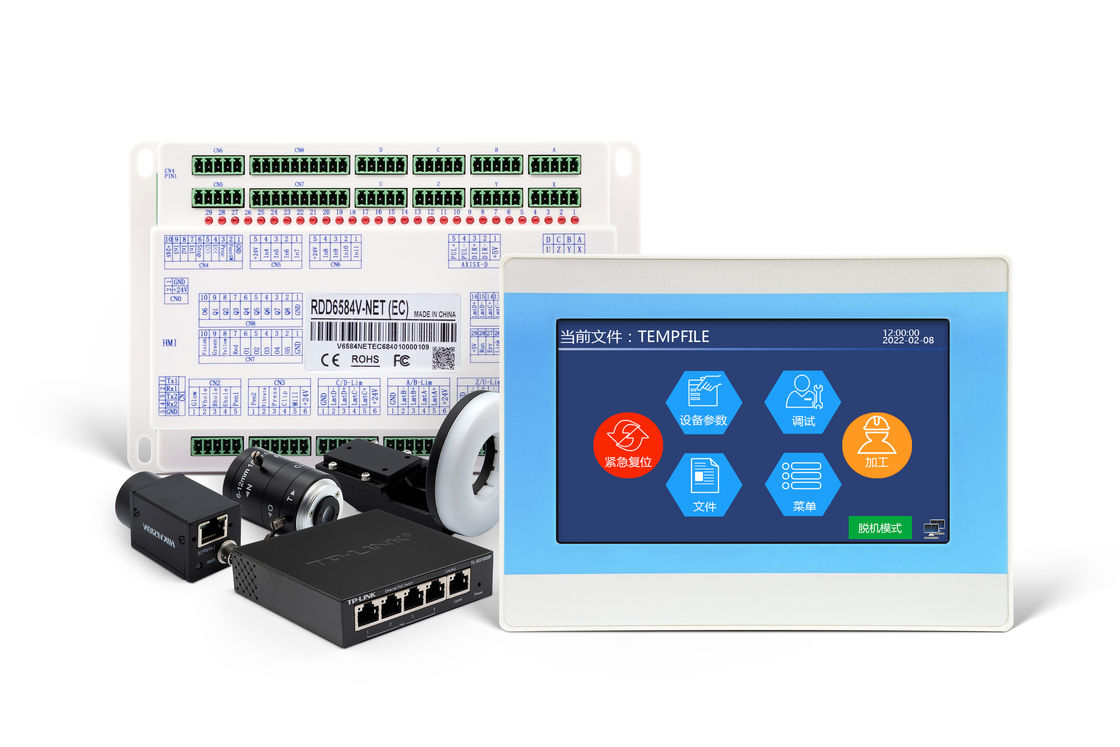

The RDD6584V-NET is a CNC digital knife cutting controller developed by Ruida Technology, specially designed for small vision positioning cutting applications.

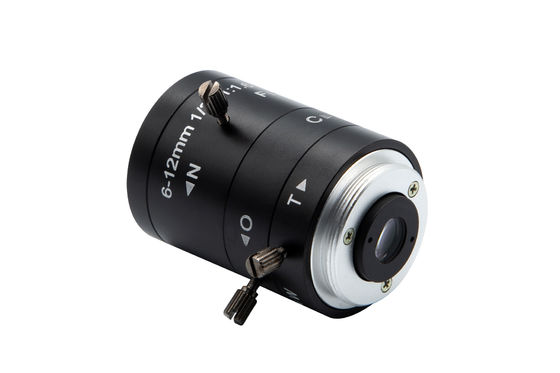

It is equipped with a compact vision camera system that supports mark point recognition and accurate contour positioning, making it ideal for cutting printed materials with fixed patterns.
The controller supports multiple cutting tools including oscillating knife, rotary knife, milling cutter, and creasing wheel, and integrates functions such as automatic feeding, circular punching, V-cut special punching, marking brush processing, and red light positioning.
With its small vision positioning system, the RDD6584V-NET provides a cost-effective visual cutting solution for textile, leather, advertising, packaging, and soft material cutting applications.
| Attribute | Specification |
|---|---|
| Model | Mark point vision positioning cutting model |
| Axes | Eight |
| Input and output | 32/28 |
| Software | VCutWorks |
| Operating system | Win7, Win8, Win10, 32-bit or 64-bit |
| Language support | 15 languages including English, Chinese, French, German, Spanish, and more |
| Feeding | Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously |

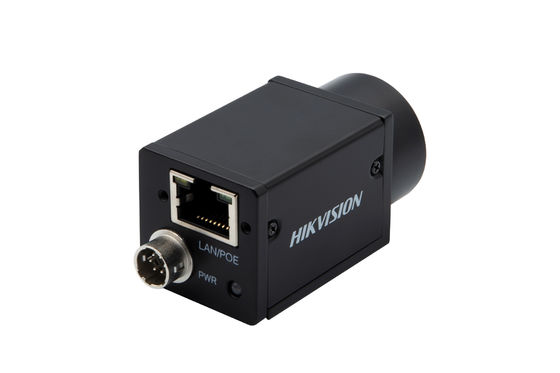

| Camera | Network interface camera, 1.3 and 5 megapixels available |

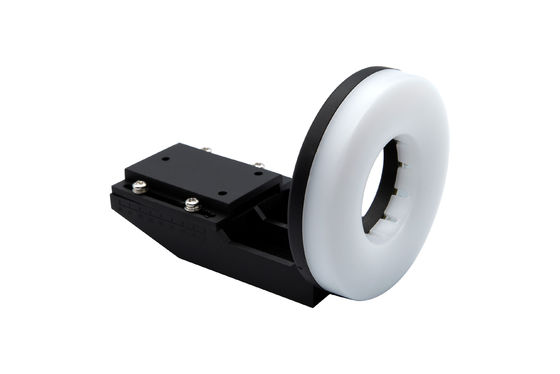

| Light source system | Red and white light source available |
| Cutting function | Mark point vision positioning cutting |
Textile & Fabric Cutting
Leather & Footwear
Advertising Graphics
Packaging Materials
Furniture Upholstery
Foam & Composite Materials
VCutWorks (Free included software)
