| Brand Name: | Ruida |

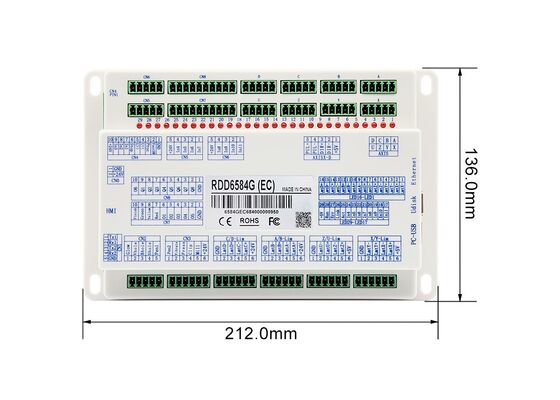

| Model Number: | RDD6584G-DFM |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Model | Single track panoramic large vision |
| Axes | Eight |
| Input and output | 32/28 |
| Installment encryption | Support |
| Onboard clock | Support |
| Tool | Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning |
| Feeding | Support X/Y/U axis feeding independently or Y and U axes feeding synchronously |
| Camera | 2400W high resolution SLR camera |
| Firmware upgrade | Remote upgrade of panel and mainboard program |
| Cutting function | Large vision contour recognition cutting |
Full panorama camera for large-area image capture
Supports wide-format material recognition
Ideal for printed pattern cutting
Automatic contour detection
Distortion correction
Accurate cutting along printed graphics
Stable single-rail motion control
Suitable for long and wide cutting tables
Industrial-level accuracy
Oscillating knife
Rotary knife
Milling cutter
Creasing wheel
Automatically adjusts cutting direction
Improves edge quality
Reduces material deformation
