| Brand Name: | Ruida |
| Model Number: | RDC6563FG-LITE |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |
Ruida RDC6563FG-LITE Fiber Laser Control System Support Frog Fly Cutting With Camera For Cutting Machine
Discroption of RDV6563FG-LITE:

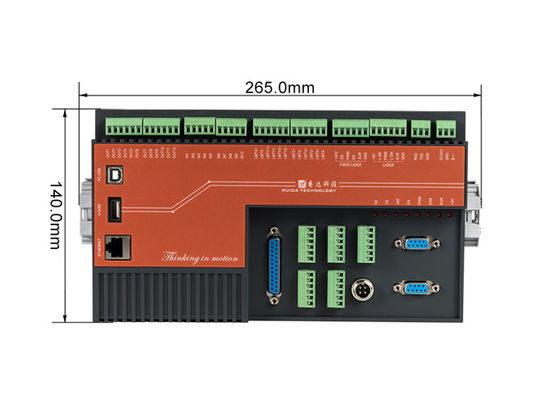

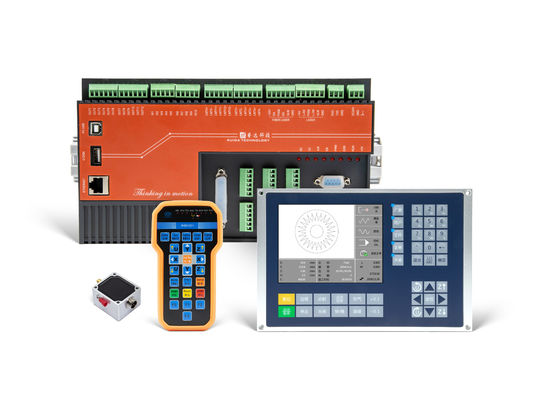

The RDC6563FG-LITE is a standalone CNC fiber laser cutting controller by Ruida Technology, designed for stable and precise metal cutting.
It features a capacitive Z-axis automatic height system with fast response and accurate adjustment. The Linux-based interface offers intuitive operation, advanced motion control, large file storage, and multi-port IO, with optional Ethernet or USB communication.
Paired with RDCutist software, it supports jump cutting, flying cutting, and short-distance cutting without lifting, ideal for stainless steel, aluminum, carbon steel, and other sheet metal CNC laser cutting.
Product feacture:
Supports 6-axis CNC motion with fully integrated digital Z-axis height control system, high-precision capacitive sensor, dynamic servo accuracy < 0.1mm, and detection accuracy < 0.01mm.
Automatic capacitance parameter calibration, compatible with any cutting head.
Adjustable layer parameters for cutting height and speed, meeting diverse metal cutting and fabrication requirements.
Supports multi-stage pierce, step pierce, and pulse pierce for precise processing.
Advanced cutting functions including frog cutting, flying cutting, and no-rise cutting.
Manual/continuous operation modes with speed adjustment keys for flexible control.
Optimized for metal processing techniques such as die-cutting, pre-piercing, and precision sheet metal cutting.
Optional mark point vision positioning for accurate printed material alignment.
Supports standalone operation and offline modification of manufacturer parameters, user settings, and file attributes, suitable for flexible industrial fiber laser cutting applications.
Software RDCutist(Free)
Support PLT,DXF,AI and other file formats import,display and edit functions,support image file import and processing.
Technical Parameters:
| Model | RDC6563FG-LITE |
| Laser source | Fiber laser/CO2 laser/RF laser |
| Axis | 6 |
| Cutting function | Mark point vision positioning metal and non-metal mixed cutting |
| Pecision | 1 pulse |
| Auto-focus | Z axis height control and auto-focus control in laser head |

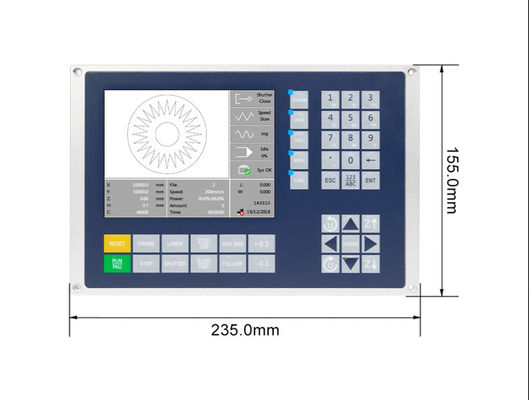

| Panel | 5.7” TFT displayer with control and number keys |
| Engraving function | Plane engraving |
| Return position | setting when job finished |
| RTC | Support encryption for installment |
| Update | Support Operating panel update and controller update online |
| Feeding | Support |
| Height control | 0.1mm, Z axis height control. high precise height sensor. |
| Detection precision: | 0.01mm |
| System protection | Collision protection, limit protection and servo alarm protection Laser alarm protection and machine protection |
| Software | RDCutist |
| Operating system | WinXP, Win7, Win8, Win10. |
| Languages | Support simplified Chinese,traditional Chinese and English |
