7-Inch Touchscreen Laser Controller – Quick Parameter Adjustment and Dynamic Material Preview for Enhanced Efficiency

Brand Name:	RUIDA
Model Number:	RDD6616U-DFM
MOQ:	1
Price:	Negotiable - Inquire Within
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1500sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Packaging Details:

Carton Packing

Supply Ability:

1500sets/day

Highlight:

7-inch laser touchscreen controller

oscillating knife cutting controller with dynamic preview

quick parameter adjustment laser controller

Product Description

Parameter

NameSpecification
ModelPanoramic large vision double track model
Axis16
Input and output43/43
Communication interfaceEthernet, USB and WIFI (optional)

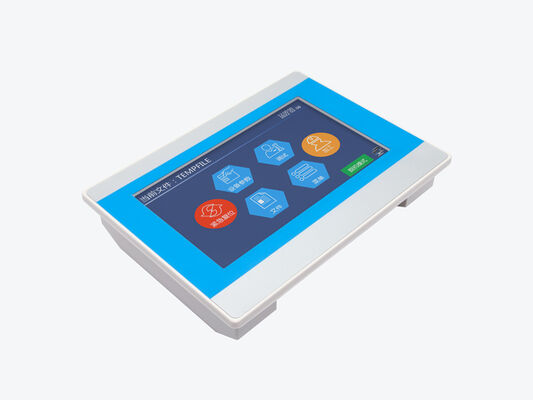

Panel7” touch screen, support parameter modification, static preview and dynamic display of graphics
Toolvibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
FeedingSupport X/Y/U axis feeding independently or Y and U axes feeding synchronously；repeated multi-template feeding

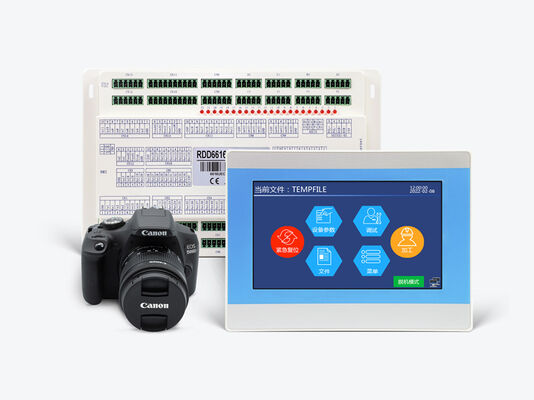

Camera2400W high resolution SLR camera
Light source systemNone
Cutting functionDouble coordinate system large vision contour recognition cutting
Installment encryptionSupport
Onboard clockSupport
Firmware upgradeRemote upgrade of panel and mainboard program
SoftwareVCutWorks
Operating systemWin7, Win8, Win10, 32-bit or 64-bit
Language15 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian and Polish

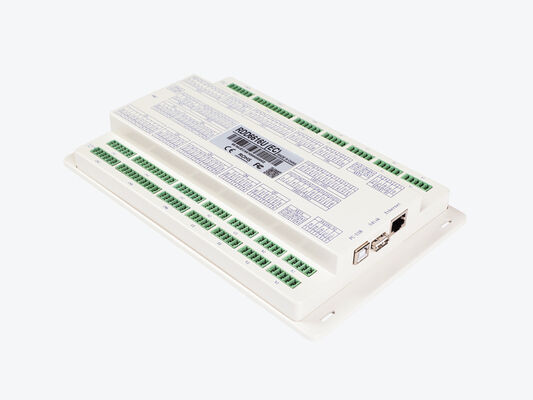

SizePanel:L199mm*W145mm*H39.1mm Mainboard: L240mm*W151.5mm*H33.5mm
AccessoriesWireless handheld box, RD-APP and RD-WIFI

Function

High-response toolpath following control, supporting multiple tool processing methods
Integrated vibration knife, rotary knife, milling cutter, press wheel, circular punching, V-shaped punching, brushing, red-light positioning, and other processing functions
Supports single XY axis processing, dual-XY asynchronous processing, and dual tool-head synchronous processing
Supports mark-point positioning cutting, large-format panoramic vision cutting, and projection-assisted cutting

Mainly applied to non-metal cutting, including garments, sofas, digital printing materials, advertising media, curtains, bags, shoes, and other similar products.
