RDD6616US-DFM Laser Cutting Controller – 16-Axis Support, Ethernet & Wi-Fi Connectivity for Seamless Integration

Parameter

• NameSpecification
• ModelPanoramic large vision double track model
• Axis16
• Input and output43/43
• Communication interfaceEthernet, USB and WIFI (optional)

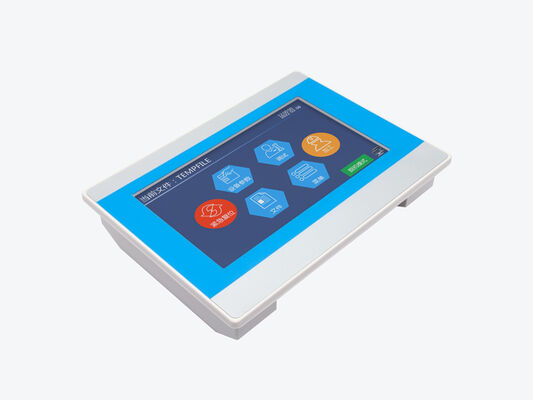

• Panel7” touch screen, support parameter modification, static preview and dynamic display of graphics
• Toolvibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning
• FeedingSupport X/Y/U axis feeding independently or Y and U axes feeding synchronously；repeated multi-template feeding
• Camera2400W high resolution SLR camera
• Light source systemNone
• Cutting functionDouble coordinate system large vision contour recognition cutting
• Installment encryptionSupport
• Onboard clockSupport
• Firmware upgradeRemote upgrade of panel and mainboard program
• SoftwareVCutWorks
• Operating systemWin7, Win8, Win10, 32-bit or 64-bit
• Language15 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian and Polish

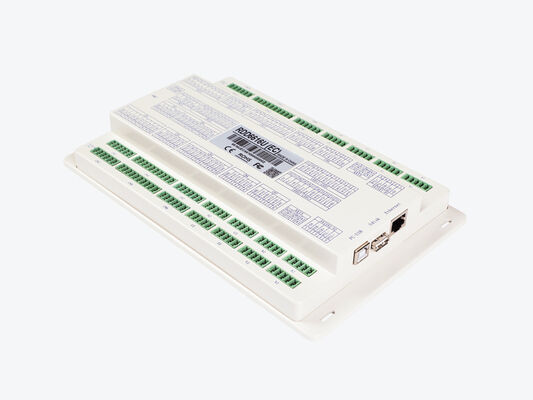

• SizePanel:L199mm*W145mm*H39.1mm Mainboard: L240mm*W151.5mm*H33.5mm
• AccessoriesWireless handheld box, RD-APP and RD-WIFI

Function

• High-response toolpath following control, supporting multiple tool processing methods
  Integrated support for vibration knife, rotary knife, milling cutter, press wheel, circular punching, V-shaped punching, brushing, red-light positioning, and other processing functions
  Supports single XY axis processing, dual-XY asynchronous processing, and dual tool-head synchronous processing
  Supports mark-point positioning cutting, large-format panoramic vision cutting, and projection-assisted cutting
