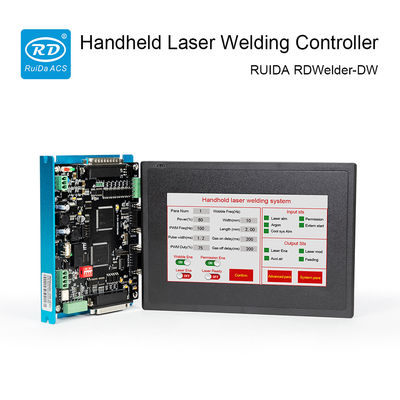

RUIDA RDWelder-DW Laser Welding Controller featuring support for laser alarm cooling system alarm external start stop and welding protection input
Description Of Ruida Controller RDWelder-DW
RDWelder-DW is a handheld dual-pendulum control system independently developed by Ruida Technology for handheld laser processing applications. It combines laser cutting, welding, and cleaning in a single platform, allowing seamless switching between different processing modes. The system supports dual galvanometer motor control, multiple oscillation waveform options, automatic wire feeding, and related functions. It also features laser power ramp-up and ramp-down control, advance gas activation, delayed gas shut-off, and other auxiliary functions. Designed for ease of use, the system provides real-time display of input/output IO status, alarm messages, motion status, and other operational information.
| Parameter | RDWelder-DW |
| Laser source | Handheld high power continuous fiber laser |
| Galvanometer protocol | XY2-100 |
| Communication interface | RS232 |
| Motion control | Double pendulum of galvanometer |
| Input and output | Support multi-channel general input and output, used for auxiliary gas control |
| External protection | One channel welding protection input |
| Control function | Support online power and frequency adjustment, support external start and stop |
| External alarm input | Support laser alarm, cooling system alarm and other protection input |
| Installment encryption | Support |
| Onboard clock | Support |
| Firmware upgrade | Support the upgrade of system by U disk |
| Welding process | Support automatic wire feeding, gas activation delay , gas closure delay, slow rise and fall of power |
| Welding technology | Support spiral welding of single and double pendulum of galvanometer |
| Language | Simplified Chinese, English,Traditional Chinese, Russian, German |

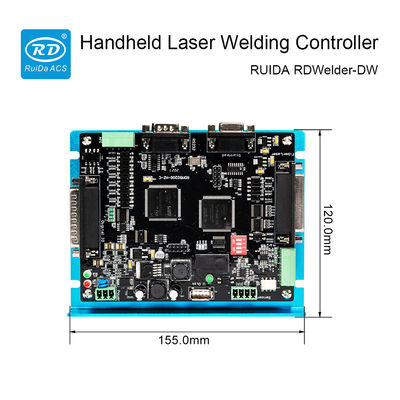

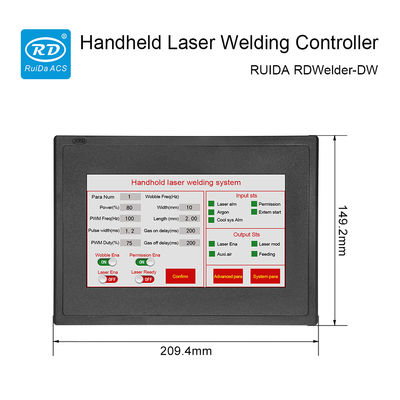

| Size | Panel: L210mm*W150mm*H24mm Mainboard: L230mm*W139mm*H60mm |
Key Feature
(1) Standalone operation, Support RS232 communication

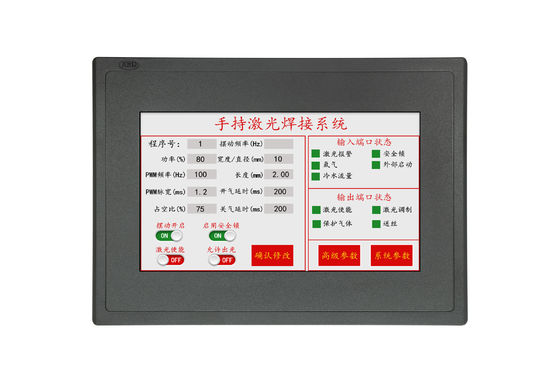

(2) Intelligent monitoring, real-time display of motion status and alarm information
(3) Support a variety of oscillating modes and automatic wire feeding function
(4) Support gas activation delay, gas closure delay, slow rise and fall of power
Benefits
Supports five-in-one functionality, including welding, cutting, cleaning, battery welding, and switch cleaning.
Real-time temperature monitoring display helps reduce lens wear and lowers replacement frequency.
Features a drawer-style lens design for quick and convenient replacement.
Compatible with lithium battery welding, enabling expansion into the automation and steel industries.
Supports Bluetooth APP-based monitoring and control.
Maximum welding and cleaning width reaches up to 12 mm.
Application Fields
This handheld laser welding system is suitable for various industries, including:
(1) Manufacturing: For high-precision welding and cutting of metal components.
(2) Automotive: Used for welding parts and cleaning surfaces.
(3) Aerospace: Ideal for applications requiring meticulous quality control.
(4) Electronics: For precision welding of circuit boards and components.
