| Brand Name: | RUIDA |
| Model Number: | RDD6616U-DFM |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Attribute | Value |
|---|---|
| Brand | RUIDA |
| Model | RDD6616U-DFM |
| Axis | 16 |
| Input and output | 43/43 |

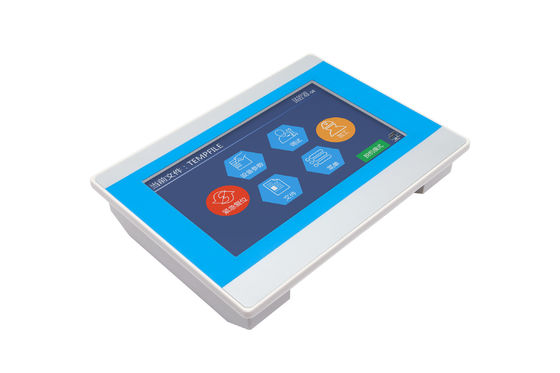

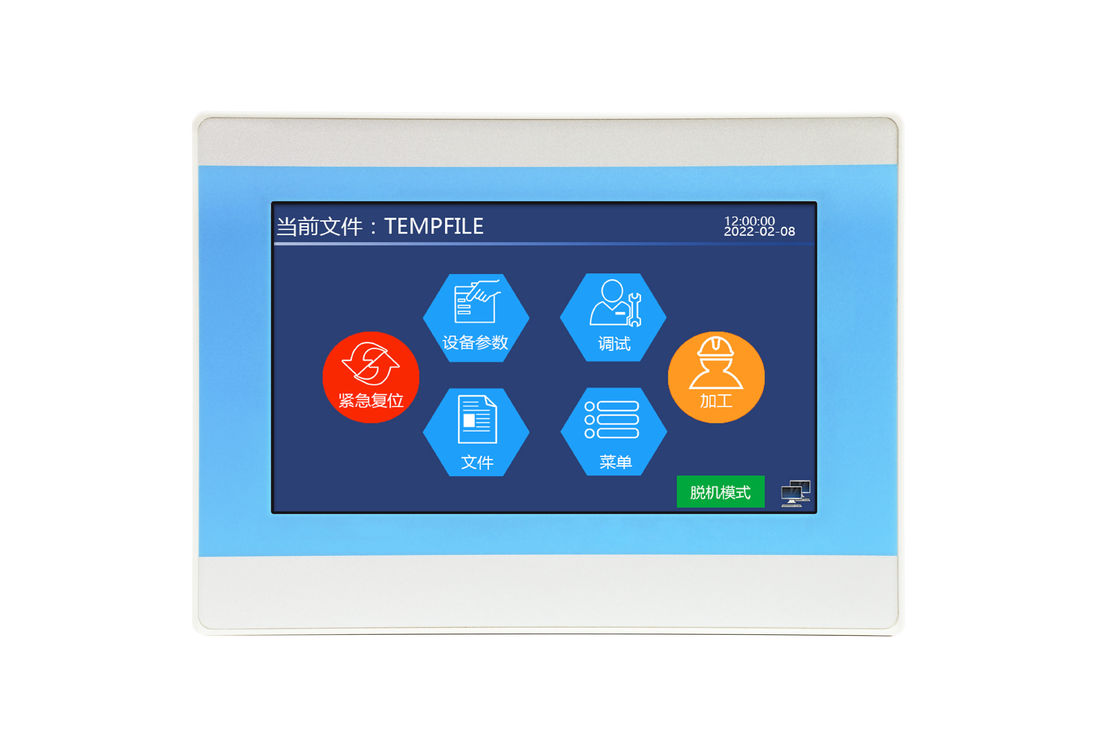

| Panel | 7" touch screen, support parameter modification, static preview and dynamic display of graphics |
| Communication | Ethernet, USB and WIFI (optional) |
| Tool | vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning |
| Feeding | Support X/Y/U axis feeding independently or Y and U axes feeding synchronously; repeated multi-template feeding |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Software | RDVision, RDCMarkVision, RDWorksV8, RDImage |
Key Features
Comprehensive Functionality: Includes all features available in the standard controller.
High-Accuracy Positioning: Delivers precise positioning performance across a wide range of applications.
Feature Point Recognition: Supports identification and positioning of both feature points and auxiliary reference marks.
Vision-Based Cutting: Enables accurate mark point vision cutting for improved processing accuracy.
Irregular Material Processing: Supports matching and cutting of irregularly shaped materials.
Projection Cutting Capability: Allows projection-based cutting for greater processing flexibility.
Dual Coordinate System Support: Enables asynchronous operation in dual-beam or dual-cantilever configurations.
