| Brand Name: | Ruida |
| Model Number: | RDC6685U-DFM |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Attribute | Value |
|---|---|
| Brand | RUIDA |
| Axis | 8 |
| Multi-head synchronous | Double coordinates system control, support double head asynchronous and synchronous |
| Laser channel | 4 |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 5'' color screen + keys |
| Feeding | U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Encryption | Support |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Onboard clock | Support (support the modification of time) |
Product Overview
The RDC6685U-DFM from Ruida Technology marks a significant advancement in dual-head control systems, designed specifically for high-end cutting applications. This advanced controller provides intelligent and efficient solutions for large-format material processing.
Dual-Head Intelligent Control:
Advanced management of dual X/Y coordinate systems
Supports independent and asynchronous cutting operations
Enables simultaneous and synchronized head startup
Integrated intelligent anti-collision mechanisms
Performance Highlights:
Intelligent zone segmentation for extra-wide material processing
Built-in automated safety protection functions
High-precision synchronization control between heads
Independent operation and management of each cutting head
Industry Applications:
Well-suited for textile manufacturing
Ideal for leather cutting processes
Improves efficiency in fabric cutting applications
Optimized for large-format material processing

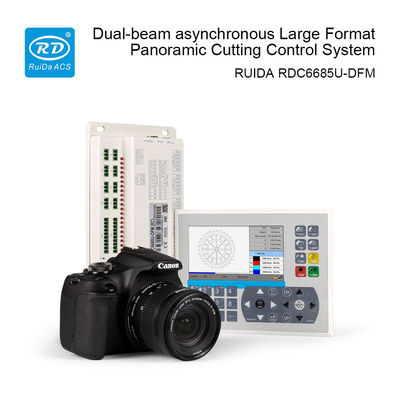

RDVisionWorks, a large format intelligent visual cutting software, can capture the entire machine plane image at once, extract contours, and perform template matching recognition. The software supports full automation of feeding, photography, identification and cutting processes.
| Parameter | Specification |
|---|---|
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 8 |
| Laser channel | 4 |
| Multi-head synchronous | Double coordinates system control, support double head asynchronous and synchronous |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 5" color screen + keys |
| Feeding | U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Encryption | Support |
| Onboard clock | Support (support the modification of time) |
| Firmware | Remote upgrade of panel and mainboard program |
| Cutting | Large-format visual cutting, Mark point vision and projection cutting |
| Camera | 24 megapixels resolution, 10-18mm and 18-55mm focal length available |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Software | UnionLaser, RDWorksV8, RDVisionWorks |
| Language | 13 languages including English, Chinese, French, Russian, etc. |

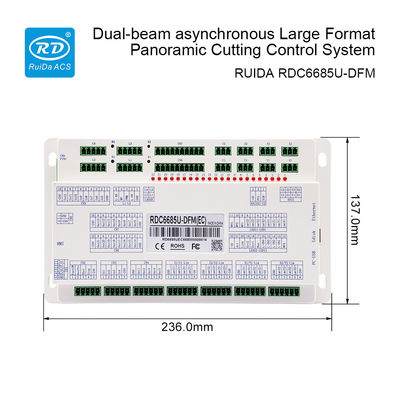

| Size | Panel: 180×140×42.1mm; Mainboard: 236×137×33.5mm |
| Accessories | Wireless handle and RD-WIFI |
