| Brand Name: | RUIDA |
| Model Number: | RDV6442G |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |
RDV6442G CO2 Vision Guided Cutting Engraving Control System Offering Feature positioning and Mark point positioning
Discroption of RDV6442G:
The RDV6442G is an advanced vision-assisted cutting controller developed from the RDC6442G, integrating intelligent recognition and precise positioning functions.
Equipped with a 3.5-inch color display, it operates independently and is designed for non-metal laser cutting applications.
Widely used in leather, textile, signage, and 3C electronics industries, the RDV6442G meets CE, RoHS, and FCC standards, ensuring high safety, reliability, and production compliance.
Product Feature:

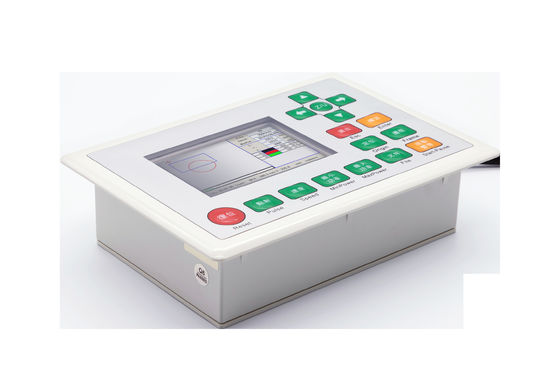

3.5-inch color display with refined design and digital keypad for intuitive operation
Standalone operation with 128MB onboard memory
Supports USB, Ethernet communication, and U-disk file transfer
Supports 4-axis control, dual laser interfaces, and multiple general I/O ports
Power-off resume function ensures uninterrupted laser cutting
Working time preview with millisecond-level accuracy
Allows on-panel adjustment of layer processing parameters
Real-time display of processing paths, coordinates, and progress status
Software RDVision(Free)
The software of RDVision was combined with image processing algorithms fior feature recognition to complete the cutting work by manually block out the cutting contour.
Technical Parameters:
| Parameters | RDV6442G |
| Laser source | CO2 glass tube, CO2 RF tube ,Fiber and UV lasers |
| Axis | 4 axis, Pulse+ DIR signal, maximum Pulse frequency is 400KHZ |
| Laser channel | 2 |
| Precision | + / - 0.5 pulse |
| Safety protection | Limit protection,Water protection,Cover protection |
| Firmware | Support the remote upgrade of mainboard and panel program |
| Camera | 1.3 million, 3 million, 5 million pixels are optional.Lens of 8~12mm |
| Light source | LED red and white ring light source |
| Vision positioning | Feature recognition and MARK point positioning |
| Installment encryption | Support |
| Engraving | Plane engraving / slope engraving |
| Processing | Support resume processing after power failure |
| Software | RDVision |
| Language | Support simplified Chinese, traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Korean and other 12 languages. |

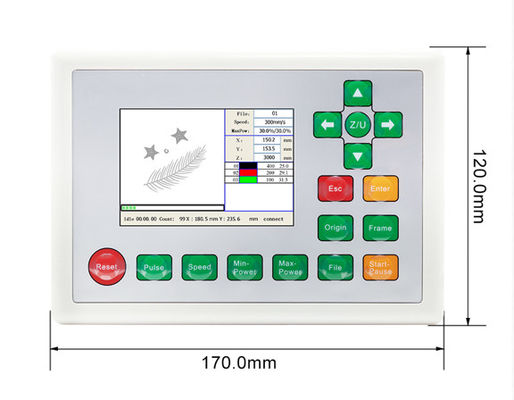

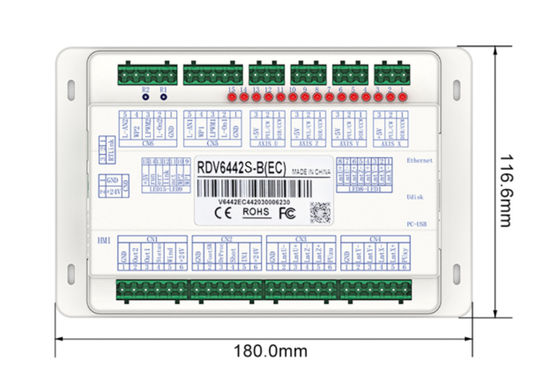

| Size | Panel:L170*W120*H46.83mm Mainboard:L180*W116.6*H33.1mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Advanced vision-assisted cutting delivers high-precision recognition and positioning
Built on the proven RDC6442G controller platform for stable and reliable performance
3.5-inch color screen provides a clear, intuitive user interface
Standalone operation enables efficient use without external devices
Optimized for non-metal laser cutting in textile, leather, signage, and 3C industries
CE, RoHS, and FCC certified, ensuring safety, quality, and global compliance
