| Brand Name: | RUIDA |
| Model Number: | RDV6445G |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |
RUIDA CO2 Laser Vision Controller RDV6445G Tailored for Vision Cutting Applications in Clothing Leather Digital Printing and Advertising
Discroption of RDV6445G:

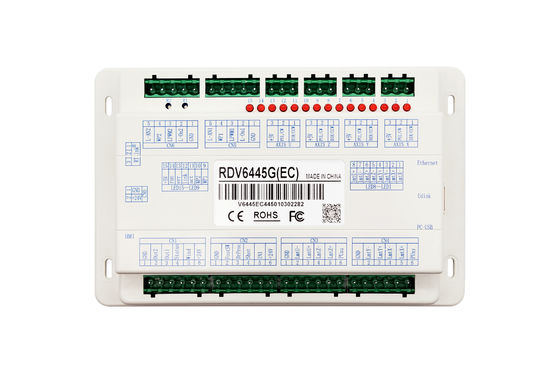

The RDV6445G is a sophisticated vision-guided cutting control system based on the RDC6445G controller, designed to support feature recognition for precise positioning and MARK point auxiliary positioning functions. It is particularly focused on vision cutting applications in the clothing, leather, digital printing, advertising, and 3C industries. With its advanced vision-guided capabilities, the RDV6445G streamlines cutting processes by accurately identifying and positioning on key features, ensuring high precision and efficiency. Its specialized focus on various industries allows for customized solutions that meet the unique demands of each sector, from intricate fabric patterns to detailed component cutting in 3C manufacturing.
Product Feature:

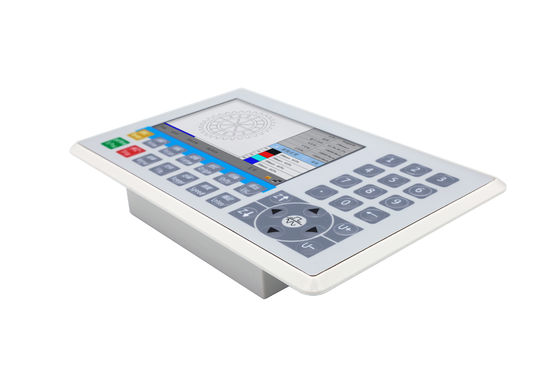

1. Compact Display: 5” color screen with an array of number and control keys.
2. Versatile Communication: Standalone operation with USB, Ethernet, and U flash disk support.
3. Multi-Axis Control: Supports 4 motion axes, dual laser interfaces, and multi-channel IO.
4. Precision Positioning: High-accuracy feature recognition and Mark point positioning.
5. Advanced Vision Cutting: Supports Mark point cutting, irregular material matching, and projection cutting.
6. Industry-Focused: Tailored for vision cutting in clothing, leather, digital printing, advertising, and 3C industries.
Software RDVision(Free)
The software of RDVision was combined with image processing algorithms fior feature recognition to complete the cutting work by manually block out the cutting contour.
Technical Parameters:
| Parameters | RDV6445G |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 4 |
| Laser channel | 2 |
| Axis control interface | Pulse+dir or +/-pulse, single-ended output |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 5” color screen + keys |
| Feeding | U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding |
| Encryption | Support |
| Onboard clock | Not support |
| Firmware | Support the remote upgrade of mainboard and panel program |
| Camera | Cameras of 1.3, 3 and 5 megapixels are available. Lens of 8~12, 35 and 50mm are available. |
| Light source | LED red and white circular light source |
| Cutting | Feature positioning, Mark point positioning |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Processing | Support resume processing after power failure |
| Software | RDVision, RDCMarkVision, RDWorksV8, RDImage |
| Language | Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese |
| Size | Panel:L199.5*W124.5*H42.1mm Mainboard:L180*W116.6*H33.1mm |
| Accessories | Wireless handle, RD-APP and RD-WIFI |
Note: Virtual printing only supports Win10.
