RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S

Name: RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDV6442S
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDV6442S
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Light Source:

LED Red And White Circular Light Source

Laser Channel:

Camera:

1.3 Milhon, 3 Milhon, 5 Milon Pixoels Are Opticnal

Pecision:

+/.0.5 Pulse

Safety Protection:

Limit Protcetion,Water Protection,Cover Protection

Encryption:

Support

Software:

RDVisionV8,Coreldraw,Lightburn,Engravelab

Packaging Details:

300*340*110

Supply Ability:

100 sets/day

Highlight:

Non Metal Cutting Control System

Double Heads Laser Control System

Double Heads Cutting Engraving Control System

Product Description

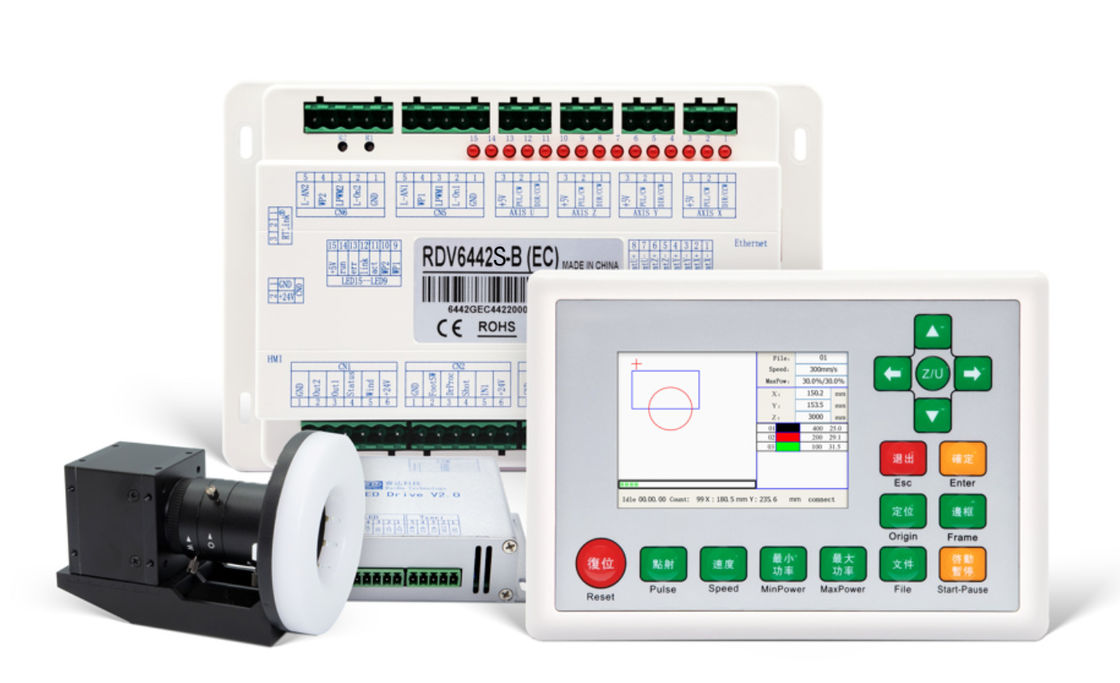

RUIDA RDV6442S Double Heads Small Vision Laser Cutting And Engraving Control System For Non-Metal Cutting

Discroption of RDV6442S:

The RDV6442S is an advanced vision cutting control system built on the RDC6442S controller, featuring recognition capabilities and MARK point positioning. It comes with a 3.5-inch color display and is designed for standalone operation, excelling in non-metal cutting for materials such as leather, fabric, signage, and 3C applications. All models are certified with CE, RoHS, and FCC, ensuring compliance with stringent safety and production standards.

Product Feature:

1. 3.5"color screen, rich craftsmanship, digital keys.
2. Working standalone,128M memory onboard.
3. Support USB/Ethernet communication and U disk.
4. Supports 4 axes, dual laser interface and multi-channel general IO input and output.
5. Support resume Laser cutting after power failure.
6. Support working hours preview, accurate to the millisecond.

RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S 0

Software RDVision(Free)

The software of RDVision was combined with image processing algorithms fior feature recognition to complete the cutting work by manually block out the cutting contour.

RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S 1

Technical Parameters:

Parameters	RDV6442S
Laser source	CO2 glass tube, CO2 RF tube ,Fiber and UV lasers
Axis	4 axis, Pulse+ DIR signal, maximum Pulse frequency is 400KHZ
Laser channel	2
Precision	+ / - 0.5 pulse
Safety protection	Limit protection,Water protection,Cover protection
Firmware	Support the remote upgrade of mainboard and panel program
Camera	1.3 million, 3 million, 5 million pixels are optional.Lens of 8~12mm

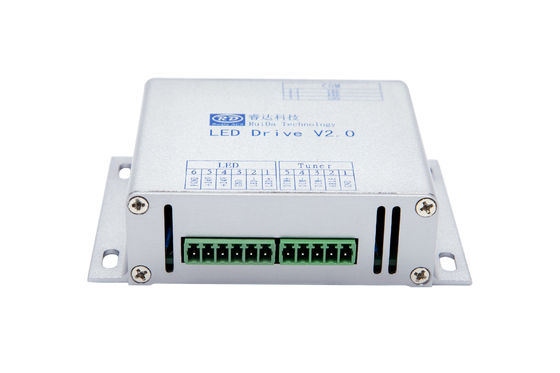

Light source	LED red and white ring light source
Vision positioning	Feature recognition and MARK point positioning
Installment encryption	Support
Engraving	Plane engraving / slope engraving
Processing	Support resume processing after power failure
Software	RDVision
Language	Support simplified Chinese, traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Korean and other 12 languages.

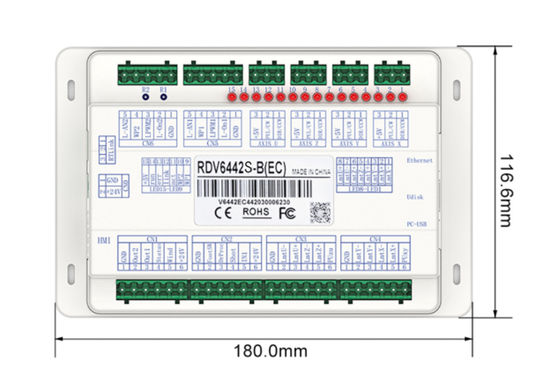

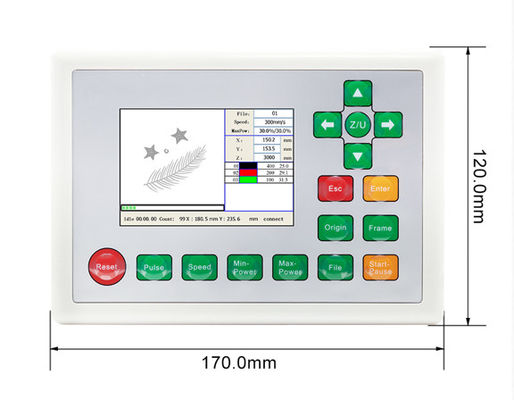

Size	Panel:L170W120H46.83mm Mainboard:L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

RUIDA Double Heads Small Vision Laser Cutting And Engraving Control System RDV6442S 2
