Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control

Name: Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDS3040F-PCI
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	RDS3040F-PCI
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Model:

RDS3040F-PCI

Laser:

Fiber Laser

Height Control:

Loop-locked Height Control

Axis:

Laser Channel:

Communication Interface:

PCI

Panel:

5.7” Color Screen + Keys

Cutting Function:

Plane Metal Cutting

Size:

Panel: L235mm*W155mm*H33.5mm Mainboard: L308mm*W150mm*H78mm

Packaging Details:

Carton Packing

Highlight:

Fiber Laser Metal Cutting Controller

RDS3040F-PCI Fiber Laser Controller

4 Axis Fiber Laser Controller

Product Description

Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller

RDS3040F-PCI fiber laser metal cutting controller supports multi-brand fiber laser sources and wireless handle operation.. It can match the closed loop adjustment controller externally. Usually, it works with LaserCutist2.0 software.

Key functions and features:

• Supports up to 4 axes, and each axis can be configured as stepper or servo motor control by users according to needs

• Supports open loop servo control

• Linear interpolation

• 4-axis continuous trajectory motion

• Tangent control of multi-axis trajectory

• On-board hardware parameter saving and encryption function

• On-board time control system

• 28 IO outputs, 16 IO inputs

• Multiple kinds of welding ripples and custom ripple

• Support multiple kinds of laser control

• PC-based motion controller

Brand	RUIDA
Model	RDS3040F-PCI
Laser	Fiber
Height control	loop-locked height control
Axis	4
Laser channel	1
Communication interface	PCI
Panel	5.7” color screen + keys
Feeding	Support automatic feeding
Cutting function	Plane metal cutting
Software	LaserCutist, support punching, lead, bridge and micro connection
Operating system	Win7, Win8, Win10

Technical Advantages

Comprehensive I/O Integration

• Connect and control multiple devices with 28 output and 16 input channels

• Implement sophisticated automation sequences with extensive I/O capabilities

• Enable seamless integration with existing manufacturing systems

Enhanced Security and Vision Systems

• Protect valuable parameters with onboard encryption technology

• Streamline operations using Mark point vision positioning functionality

• Ensure data security with robust hardware parameter storage

Professional-Grade Manufacturing Solution

• Benefit from PC-based control for user-friendly operation

• Implement advanced manufacturing processes with industrial-grade precision

• Customize control parameters for optimal performance in various applications

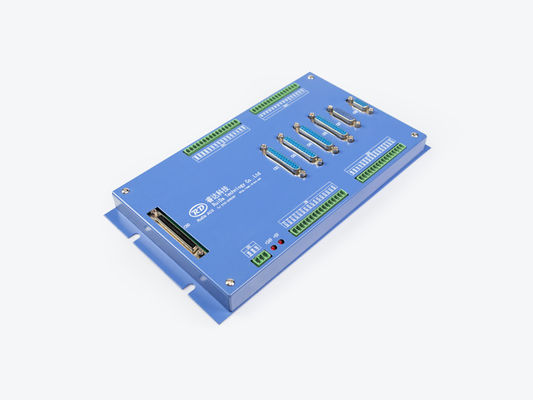

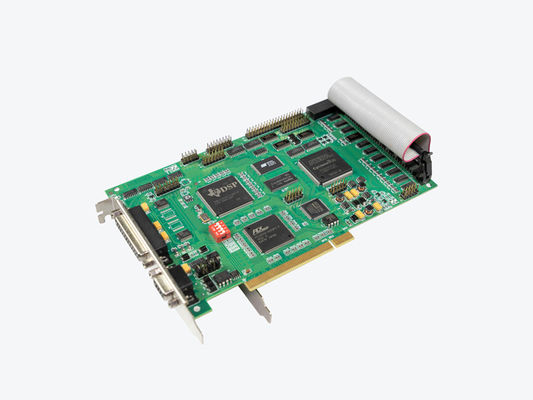

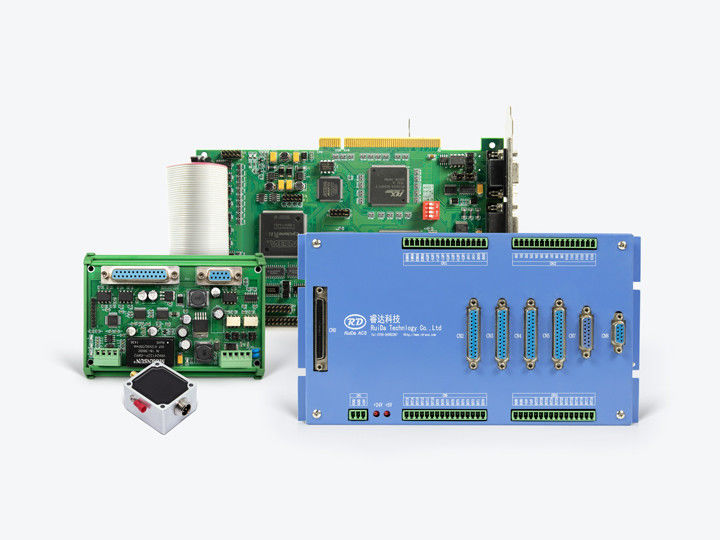

Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control 3

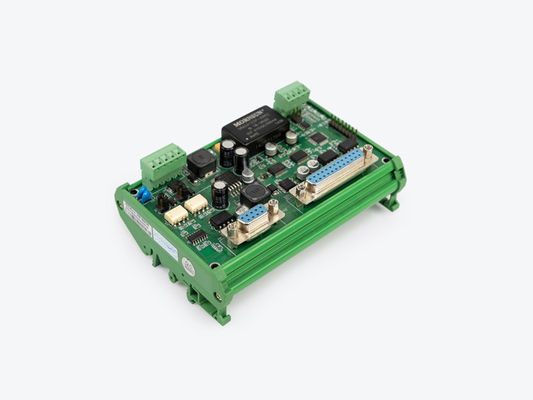

Ruida RDS3040F-PCI Fiber Laser Metal Cutting Controller Loop Locked Height Control 5
