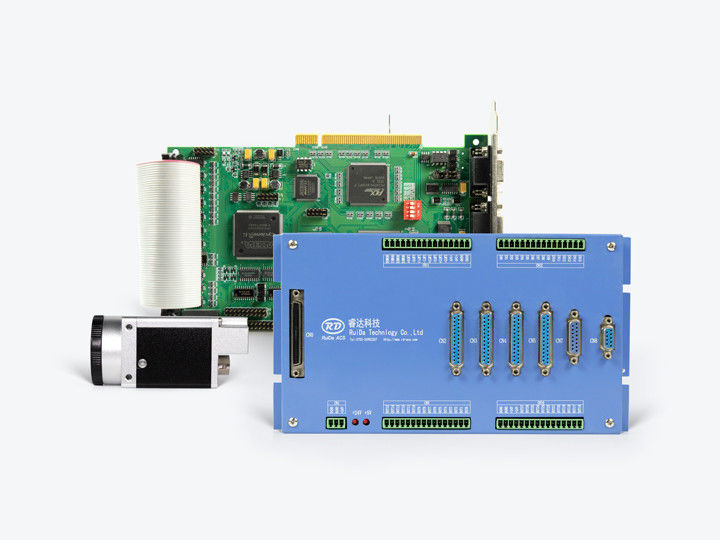

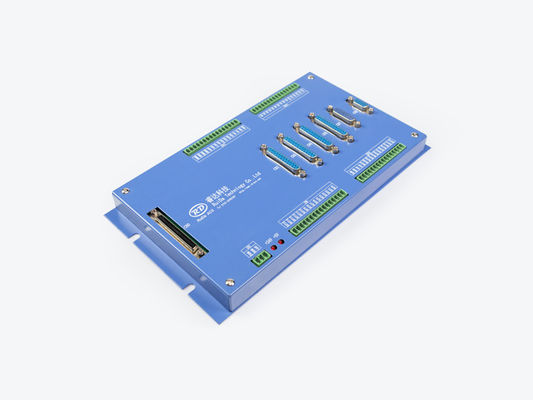

Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI

Name: Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDV3040G-PCI
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	RDV3040G-PCI
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Brand:

RUIDA

Model:

RDV3040G-PCI

Laser:

Fiber Laser

Height Control:

Loop-locked Height Control

Axis:

Laser Channel:

Communication Interface:

PCI

Panel:

5.7” Color Screen + Keys

Operating System:

OWin7, Win8, Win10

Language:

Simplified Chinese,English

Packaging Details:

Carton Packing

Highlight:

Vision Cutting Control System

Fiber Laser Controller Rudia

Laser Controller RDV3040G-PCI

Product Description

Rudia RDV3040G-PCI Mark Point Vision Cutting Control System

RDV3040G-PCI motion control system with machine vision supports Mark point vision positioning function. And it is suitable for non-metal cutting.

Key functions and features:

• Supports up to 4 axes, and each axis can be configured as stepper or servo motor control by users according to needs

• Supports open loop pulse servo control

• Linear interpolation

• 4-axis continuous trajectory motion

• 2-channel galvanometer control; shape direction synchronizes with feeding path direction

• Tangent control of multi-axis trajectory

• On-board saving and encryption function of the hardware parameter

• On-board time control system

• 28 IO outputs, 16 IO inputs

• Multiple kinds of welding ripple and custom ripple

• Support multiple kinds of laser control and laser pulse power editing

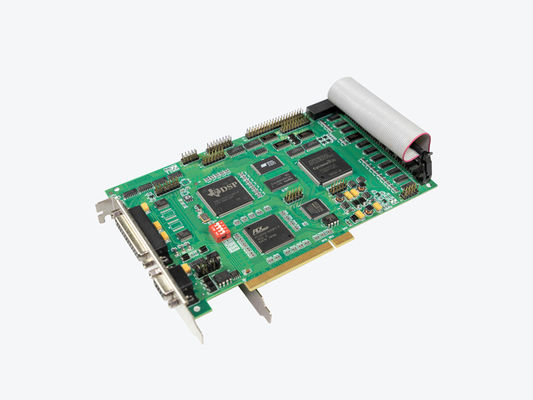

• PC-based motion controller

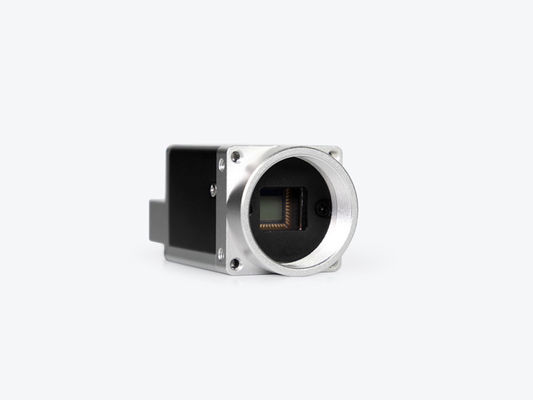

• Support Mark point vision positioning function

Brand	RUIDA
Model	RDV3040G-PCI
Laser	Fiber
Height control	loop-locked height control
Axis	4
Laser channel	1
Communication interface	PCI
Panel	5.7” color screen + keys
Feeding	Support automatic feeding
Cutting function	Plane metal cutting
Software	LaserCutist, support punching, lead, bridge and micro connection
Operating system	Win7, Win8, Win10

Our advantages:

Execute complex operations with precision using linear interpolation technology
Achieve professional-grade results with tangent control for multi-axis trajectories
Maintain consistent quality through built-in time control systems
Connect and control multiple devices with 28 output and 16 input channels
Implement sophisticated automation sequences with extensive I/O capabilities
Enable seamless integration with existing manufacturing systems

Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI 2

Mark Point Vision Cutting Control System Fiber Laser Controller Rudia RDV3040G-PCI 4
