RUIDA Visual Fiber CO2 Laser Mixed Control System For Cutting And Engraving Machines

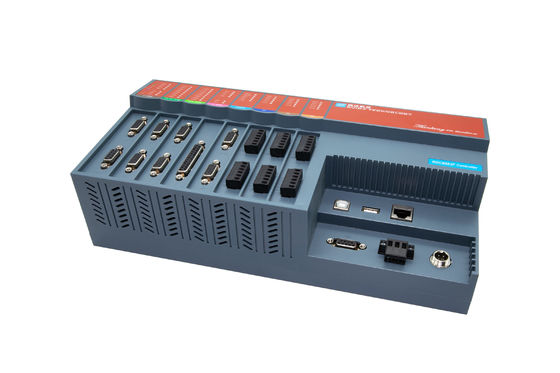

RUIDA RDV6563FG-NET Visual Fiber CO2 Mixed Cutting System For Cutting And Engraving Machines


Discroption of RDV6563FG-NET:

RDV6563FG-NET standalone fiber cutting control system is a Mark point vision fiber cutting controller developed by Shenzhen Ruida Technology Co., LTD. Based on capacitive sensing technology, Z axis is an automatic height controller adopting high--performance amplifier and professional anti-interference design, which greatly increases the speed of motion and response of the height controller and achieves the accurate automatic height control. When working with RDCutist software, it supports functions like Frog, Flight cutting and No rise.



Key Function:

1.Support standalone operation and the modification of offline manufacturer parameter, user parameter and file processing attributes
2.Support 6 axes, integrated full digital height control system, high precision capacitance sensor, dynamic servo accuracy less than 0.1mm, detection accuracy less than 0.01mm
3.Realize the automatic calibration function of the capacitance parameter, matched with any cutting head
4.Layer parameter supports cutting height and speed setting, meeting the demand of various processing technics
5.Support multistage pierce, step pierce and pulse pierce
6.Support frog, fly cutting and no rise functions

Software RDCutist(Free)

Support PLT,DXF,AI and other file formats import,display and edit functions,support image file import and processing.

Technical Parameters:







Application:

Suitable for large-format fiber laser processing machine,and widely use in small and medium power laser power laser cutting and CO2 non-metal cutting.
