RUIDA RDV6445G CO2 Laser Vision Controller For High Precision Vision Cutting

Name: RUIDA RDV6445G CO2 Laser Vision Controller For High Precision Vision Cutting
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDV6445G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDV6445G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

SIT200512230101S

Brand:

RUIDA

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Axis:

Axis Control:

Pulse+dir Or +/-pulse, Single-ended Output

Laser Channel:

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding /large Format Segmentation Feeding

Panel:

5”color Screen + Keys

Camera:

Cameras Of 1.3, 3 And 5 Megapixels Are Available. Lens Of 8~12, 35 And 50mm Are Available.

Encryption:

Support

Cutting:

Feature Positioning, Mark Point Positioning

Language:

Software:

RDVision, RDCMarkVision, RDWorksV8, RDImage

Packaging Details:

300*340*110

Supply Ability:

100 sets/day

Highlight:

CO2 Laser Vision Controller High Precision

RDV6445G CO2 Laser

CO2 Laser Vision Cutting Control System

Product Description

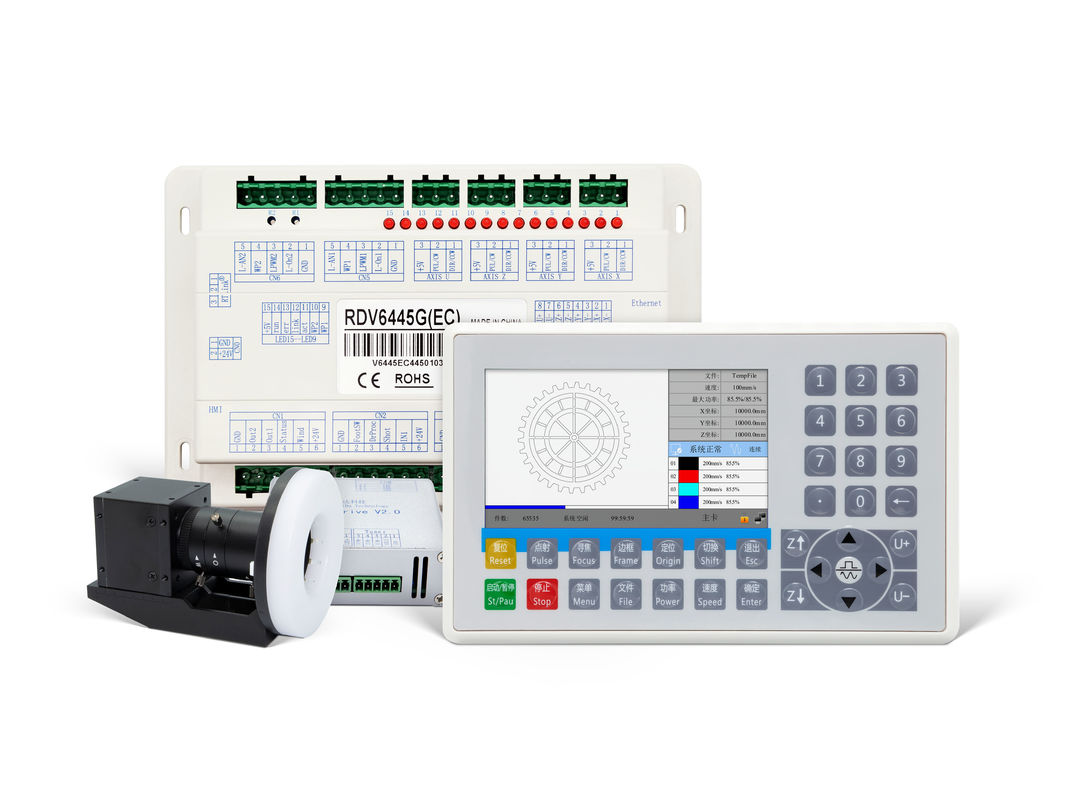

RUIDA RDV6445G High Precision CO2 Laser Vision Controller For Vision Cutting In Various Industries

Discroption of RDV6445G:

The RDV6445G, an advanced vision-guided cutting system built on the RDC6445G, specializes in feature recognition and MARK point positioning for accurate cutting. It excels in applications across clothing, leather, digital printing, advertising, and 3C industries. The system's cutting-edge vision capabilities ensure precise feature identification and positioning, enhancing both precision and efficiency in cutting tasks. Its industry-specific customization caters to the distinct needs of each sector, from complex fabric designs to precision component cutting in 3C manufacturing.

Product Feature:

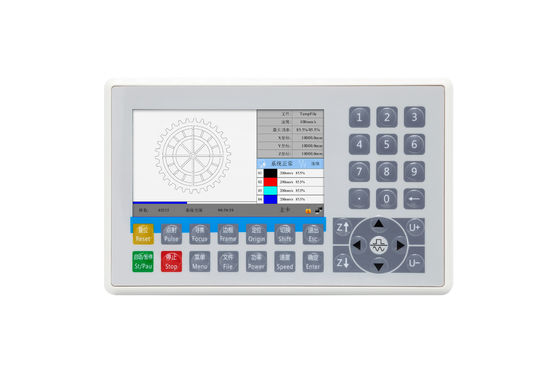

1.A 5''color screen with a comprehensive set of numeric and functional keys.
2.Operates independently and connects via USB, Ethernet, and USB flash drives.

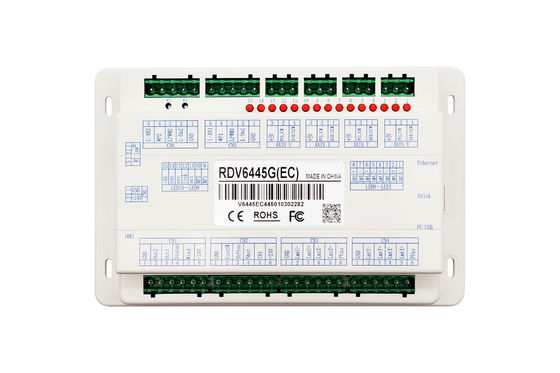

3.Manages 4 motion axes, two laser ports, and extensive IO channels.

4.Delivers precise feature recognition and MARK point alignment.
5.Sophisticated Vision Techniques: Capable of MARK point cutting, material mismatch correction, and projection cutting.

6.Designed for precision cutting in fashion, leather, digital printing, signage, and 3C electronics.

RUIDA RDV6445G CO2 Laser Vision Controller For High Precision Vision Cutting 0

Software RDVision(Free)

The software of RDVision was combined with image processing algorithms fior feature recognition to complete the cutting work by manually block out the cutting contour.

RUIDA RDV6445G CO2 Laser Vision Controller For High Precision Vision Cutting 1

Technical Parameters:

Parameters	RDV6445G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Axis control interface	Pulse+dir or +/-pulse, single-ended output
Communication	Ethernet, USB and WIFI (optional)
Panel	5” color screen + keys
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption	Support
Onboard clock	Not support
Firmware	Support the remote upgrade of mainboard and panel program
Camera	Cameras of 1.3, 3 and 5 megapixels are available. Lens of 8~12, 35 and 50mm are available.

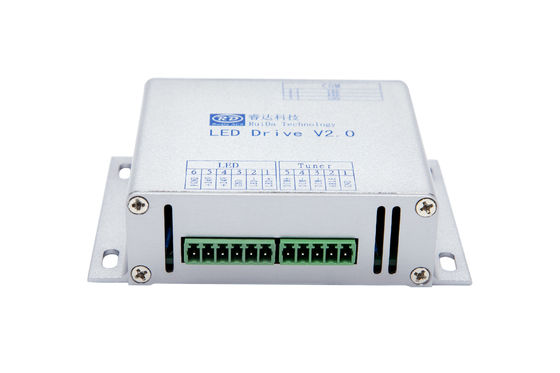

Light source	LED red and white circular light source
Cutting	Feature positioning, Mark point positioning
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDVision, RDCMarkVision, RDWorksV8, RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese
Size	Panel:L199.5W124.5H42.1mm Mainboard:L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RUIDA RDV6445G CO2 Laser Vision Controller For High Precision Vision Cutting 2
