RUIDA Small Vision Laser Cutting And Engraving Control System RDV6442G Controller

Name: RUIDA Small Vision Laser Cutting And Engraving Control System RDV6442G Controller
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDV6442G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDV6442G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Laser Channel:

Light Source:

LED Red And White Circular Light Source

Pecision:

+/.0.5 Pulse

Camera:

1.3 Milhon, 3 Milhon, 5 Milon Pixoels Are Opticnal

Encryption:

Support

Safety Protection:

Limit Protcetion,Water Protection,Cover Protection

Engraving Function:

Plan /slope Engreving

Software:

RDVisionV8,Coreldraw,Lightburn,Engravelab

Packaging Details:

300*340*110

Supply Ability:

100 sets/day

Highlight:

RDV6442G Laser Control System

RDV6442G Controller

Small Vision Cutting Engraving Control System

Product Description

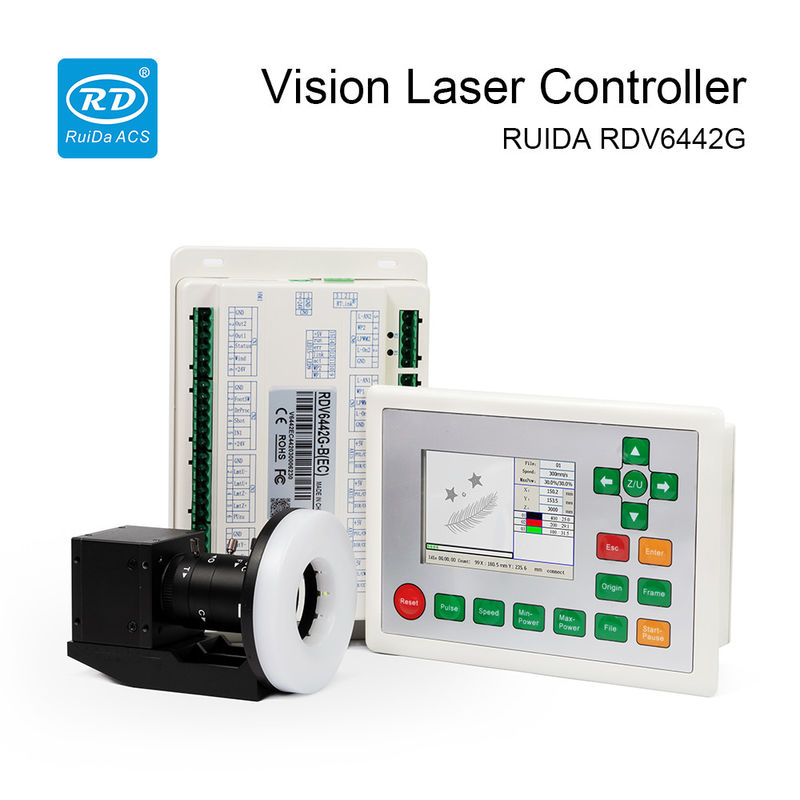

RUIDA RDV6442G Small Vision Laser Cutting and Engraving Control System

Discroption of RDV6442G:

RDV6442G is a Vision cutting control system based on RDC6442G controller,which supports feature recognition and MARK point positioning function. It is equipped with a 3.5" color screen.Standalone operation and Focus on non-metal cutting, suitable for leather, fabric, sign and 3C application fields.All products passed CE, RoHS and FCC certification, in line with the safety production standards.

Product Feature:

1. 3.5"color screen, rich craftsmanship, digital keys.
2. Working standalone,128M memory onboard.
3. Support USB/Ethernet communication and U disk.

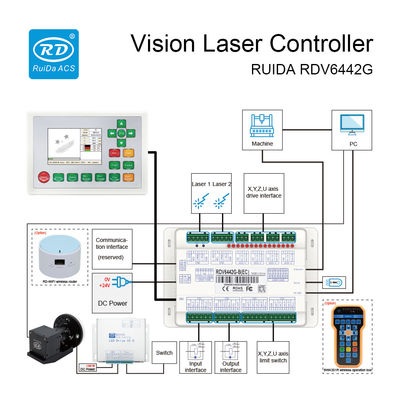

4. Supports 4 axes, dual laser interface and multi-channel general IO input and output.
5. Support resume Laser cutting after power failure.
6. Support working hours preview, accurate to the millisecond.

7. Support to modify the processing parameters of the layer from panel.

The processing path, coordinate points and progress bar real-time display.

RUIDA Small Vision Laser Cutting And Engraving Control System RDV6442G Controller 0

Software RDVision(Free)

The software of RDVision was combined with image processing algorithms fior feature recognition to complete the cutting work by manually block out the cutting contour.

RUIDA Small Vision Laser Cutting And Engraving Control System RDV6442G Controller 1

Technical Parameters:

Parameters	RDV6442G
Laser source	CO2 glass tube, CO2 RF tube ,Fiber and UV lasers
Axis	4 axis, Pulse+ DIR signal, maximum Pulse frequency is 400KHZ
Laser channel	2
Precision	+ / - 0.5 pulse
Safety protection	Limit protection,Water protection,Cover protection
Firmware	Support the remote upgrade of mainboard and panel program
Camera	1.3 million, 3 million, 5 million pixels are optional.Lens of 8~12mm
Light source	LED red and white ring light source
Vision positioning	Feature recognition and MARK point positioning
Installment encryption	Support
Engraving	Plane engraving / slope engraving
Processing	Support resume processing after power failure
Software	RDVision
Language	Support simplified Chinese, traditional Chinese, English, French, German, Russian, Spanish, Portuguese, Korean and other 12 languages.

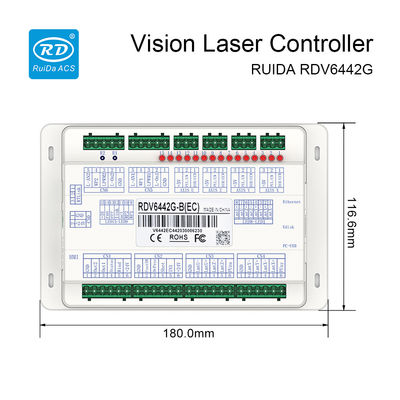

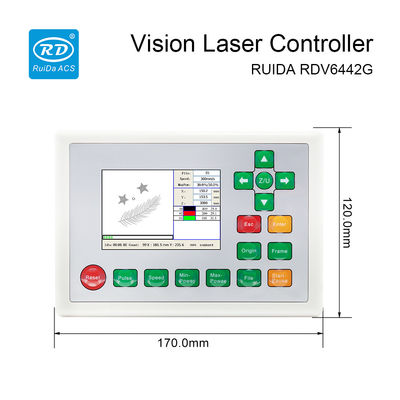

Size	Panel:L170W120H46.83mm Mainboard:L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

RUIDA Small Vision Laser Cutting And Engraving Control System RDV6442G Controller 2
