RUIDA Small Vision Laser Cutting And Engraving Control System RDV6445G

Name: RUIDA Small Vision Laser Cutting And Engraving Control System RDV6445G
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDV6445G
Price: 410.00 USD
Availability: InStock

Brand Name:	RUIDA
Model Number:	RDV6445G
MOQ:	50
Price:	Negotiable - Inquire Within
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets/day

Detail Information

Product Description

Detail Information

Place of Origin:

Mainland China

Certification:

CE FCC ROHS

Axis:

Laser Source:

CO2 Glass Tube, CO2 RF Tube And UV Lasers

Laser Channel:

Axis Control:

Pulse+dir Or +/-pulse, Single-ended Output

Panel:

5”color Screen + Keys

Feeding:

U Axis Feeding/ Y And U Axes Feeding Synchronously, Sheet Feeding /large Format Segmentation Feeding

Encryption:

Support

Camera:

Cameras Of 1.3, 3 And 5 Megapixels Are Available. Lens Of 8~12, 35 And 50mm Are Available.

Light Source:

LED Red And White Circular Light Source

Cutting:

Feature Positioning, Mark Point Positioning

Packaging Details:

300*340*110

Supply Ability:

100 sets/day

Highlight:

Vision Laser Cutting And Engraving Controller

RDV6445G Vision Controllers

Product Description

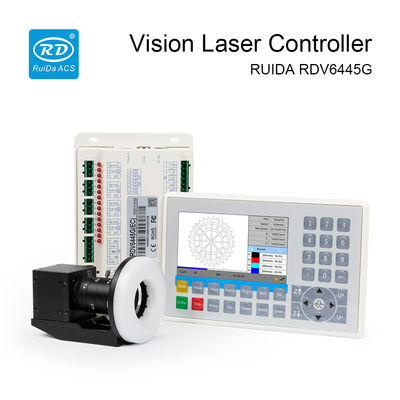

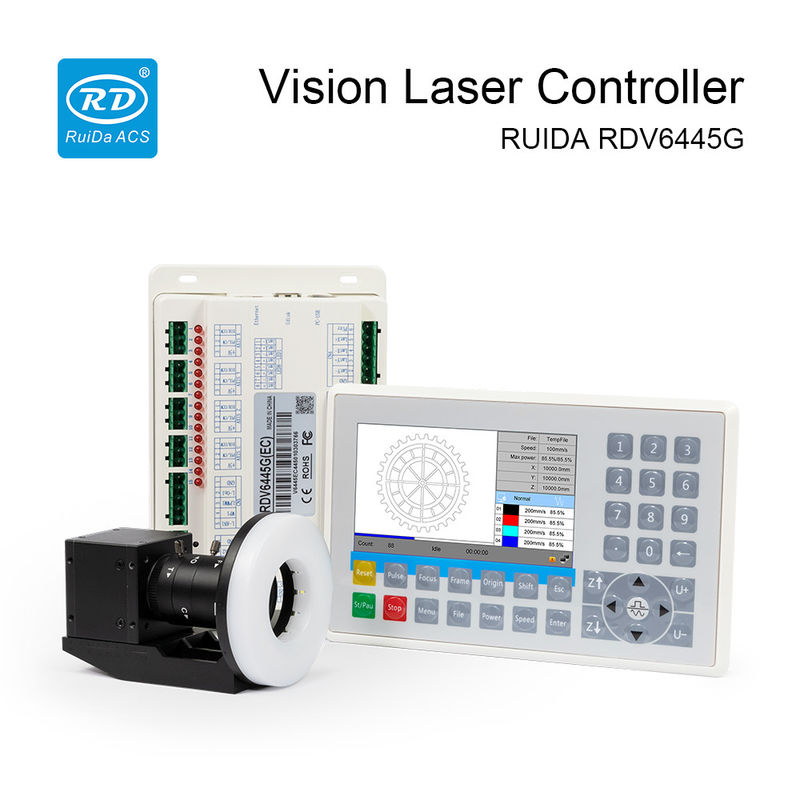

RUIDA RDV6445G Small Vision Laser Cutting And Engraving Control System

Discroption of RDV6445G:

RDV6445G is a Vision cutting control system based on RDC6445G controller, support feature recognition position positioning and MARK point auxiliary position positioning function.Focused on vision cutting in clothing, leather, digital cropping, advertising, printing and 3C industries.

Product Feature:

1. 5” color screen, rich number keys and control keys.
2.Standalone operation. Support USB and Ethernet communication and U flash disk.

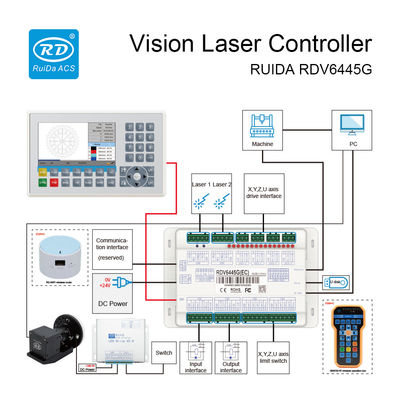

3.Support 4 motion axes, two laser interfaces and multi-channel general IO input and output.
4.High precision positioning. Support the recognition and positioning of feature and the positioning of Mark point auxiliary position.
5.Support Mark point vision cutting, the matching-cutting of the irregular materials, projection cutting, etc.
6.Focused on vision cutting in clothing, leather, digital cropping, advertising, printing and 3C industries.

RUIDA Small Vision Laser Cutting And Engraving Control System RDV6445G 0

Software RDVision(Free)

The software of RDVision was combined with image processing algorithms fior feature recognition to complete the cutting work by manually block out the cutting contour.

RUIDA Small Vision Laser Cutting And Engraving Control System RDV6445G 1

Technical Parameters:

Parameters	RDV6445G
Laser source	CO2 glass tube, CO2 RF tube and UV lasers
Axis	4
Laser channel	2
Axis control interface	Pulse+dir or +/-pulse, single-ended output
Communication	Ethernet, USB and WIFI (optional)
Panel	5” color screen + keys
Feeding	U axis feeding, Y and U axes feeding synchronously, sheet feeding, large format segmentation feeding
Encryption	Support
Onboard clock	Not support
Firmware	Support the remote upgrade of mainboard and panel program
Camera	Cameras of 1.3, 3 and 5 megapixels are available. Lens of 8~12, 35 and 50mm are available.
Light source	LED red and white circular light source
Cutting	Feature positioning, Mark point positioning
Engraving	Plane engraving, slope engraving and gray engraving
Processing	Support resume processing after power failure
Software	RDVision, RDCMarkVision, RDWorksV8, RDImage
Language	Including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese

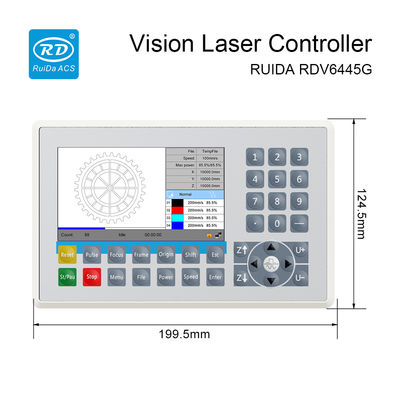

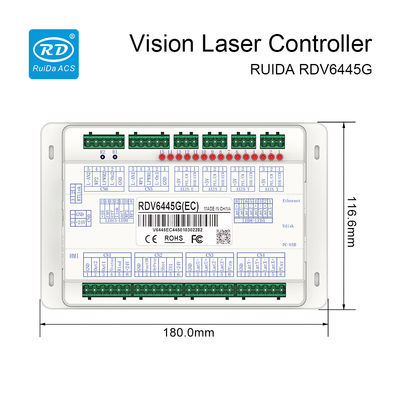

Size	Panel:L199.5W124.5H42.1mm Mainboard:L180W116.6H33.1mm
Accessories	Wireless handle, RD-APP and RD-WIFI

Note: Virtual printing only supports Win10.

RUIDA Small Vision Laser Cutting And Engraving Control System RDV6445G 2
