| Brand Name: | RUIDA |
| Model Number: | RDD6616U-DFM |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Brand | RUIDA |
| Model | RDD6616U-DFM |
| Axis | 16 |
| Input and output | 43/43 |

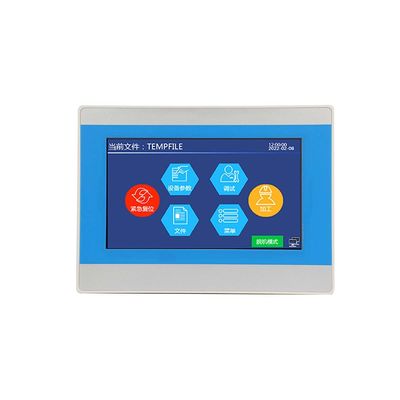

| Panel | 7" touch screen, support parameter modification, static preview and dynamic display of graphics |
| Communication | Ethernet, USB and WIFI (optional) |
| Tool | vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning |
| Feeding | Support X/Y/U axis feeding independently or Y and U axes feeding synchronously; repeated multi-template feeding |
| Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Software | RDVision, RDCMarkVision, RDWorksV8, RDImage |

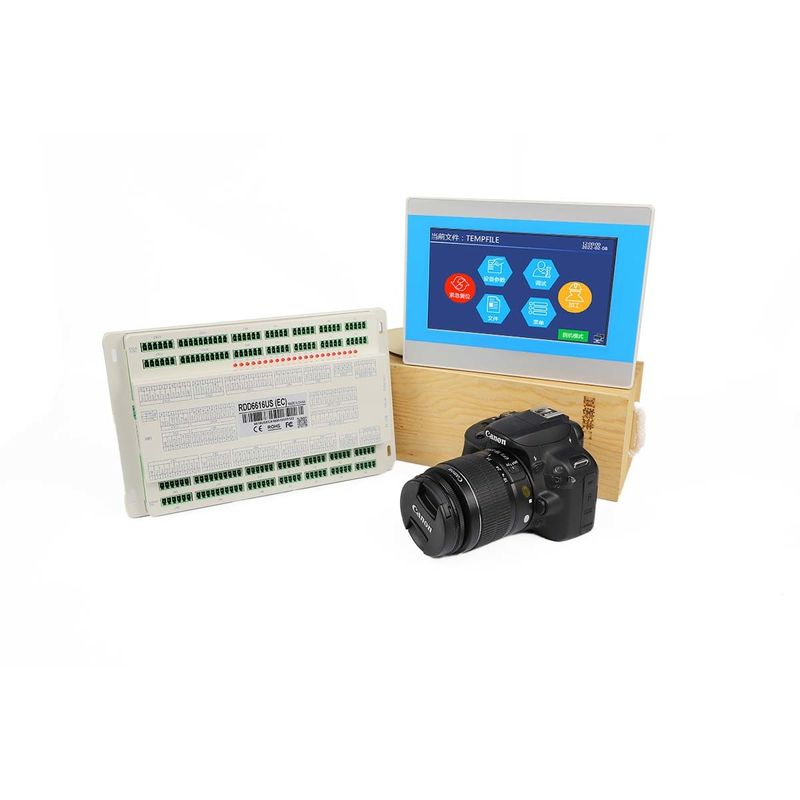

The Ruida RDD6616U-DFM Double Beam Large Format Visual Image Knife Cutting System is a dual coordinate system tool cutting controller with tool direction following control function independently developed by Ruida technology.
This advanced system integrates multiple processing methods including vibrating cutter, circular cutter, milling cutter, pressing wheel and other tools. It features automatic feeding, ultra-wide segmentation cutting, circular punching without direction, V-shaped punching with direction, brush processing and red light positioning.
