| Brand Name: | Ruida |
| Model Number: | RDD6584V-NET |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Model | Mark point vision positioning cutting model |
| Axes | Eight |
| Input and output | 32/28 |
| Installment encryption | Support |
| Onboard clock | Support |
| Firmware upgrade | Remote upgrade of panel and mainboard program |
| Feeding | Support X/Y/U axis feeding independently or Y and U axes feeding synchronously |

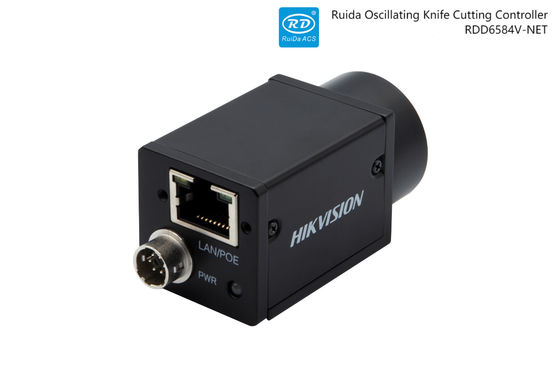

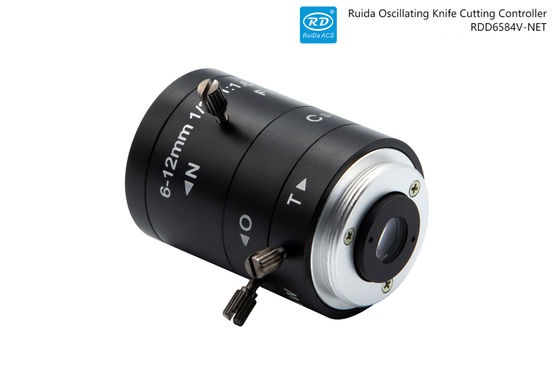

| Camera | Network interface camera, 1.3 and 5 megapixels are available |

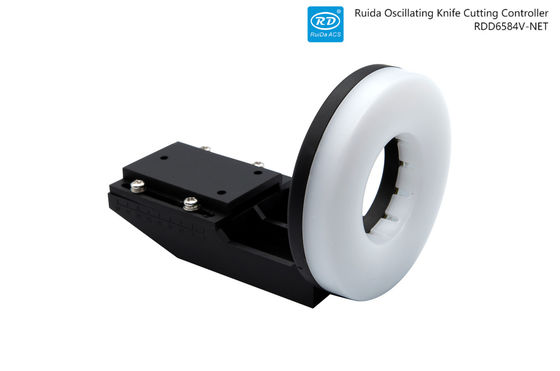

| Light source system | Red and white light source are available |
| Cutting function | Mark point vision positioning cutting |

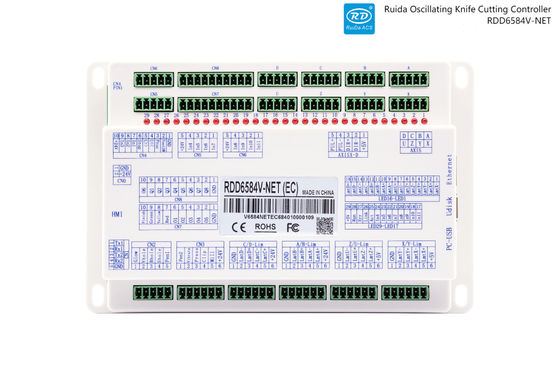

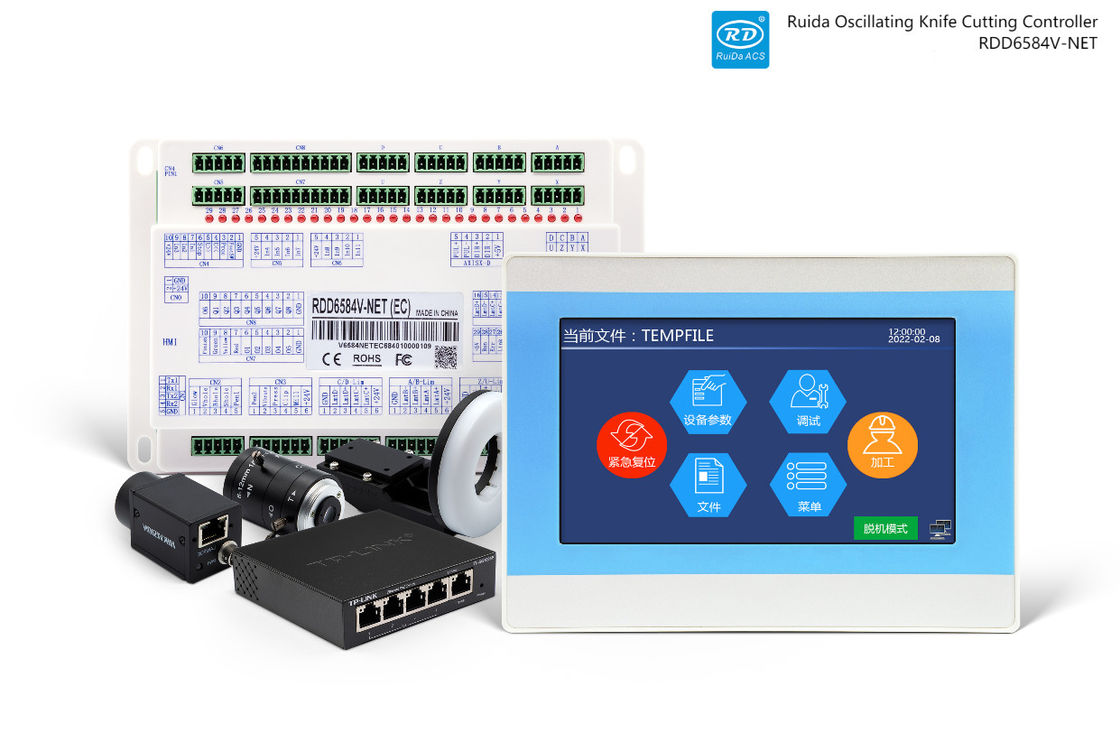

The RDD6584V-NET is a knife cutting controller with tool direction following control, developed by Ruida Technology. It integrates processing for vibrating knives, circular knives, milling cutters, pressure wheels and other tools, along with feeding, circular punching, V-shaped special punching, brush processing, and red light positioning functions.
Primarily used in non-metal cutting applications including:
VCutWorks - Free cutting software included with controller
