| Brand Name: | Ruida |
| Model Number: | RDD6584V-NET |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

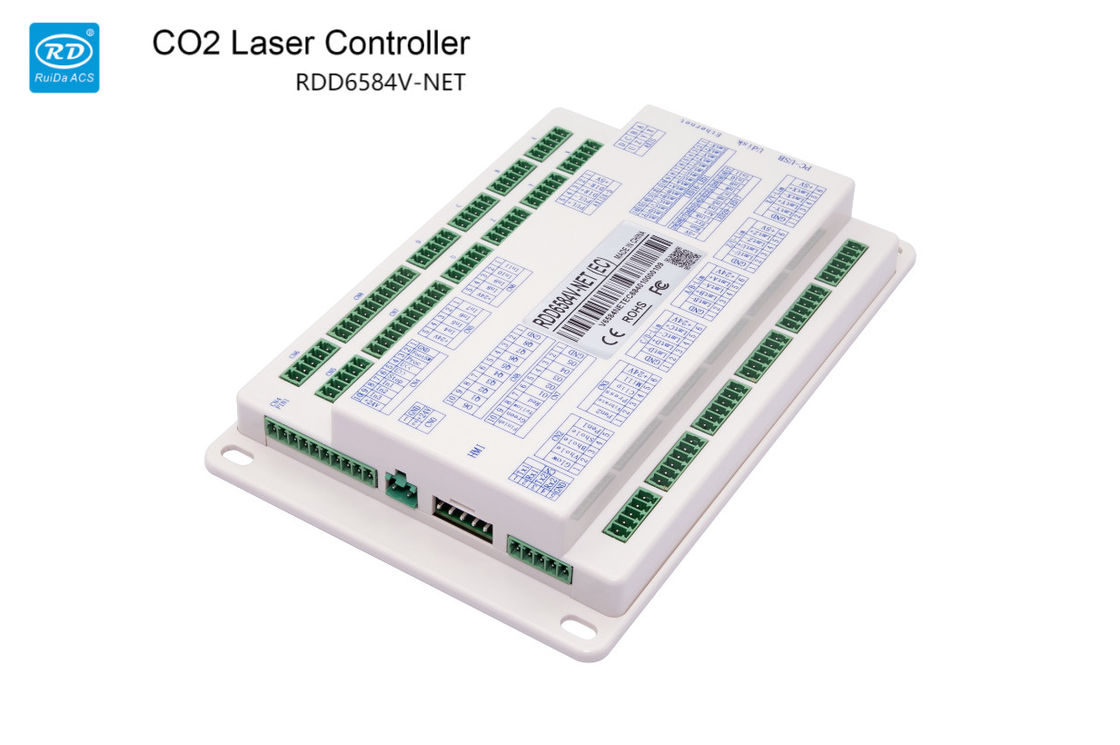

The RDD6584V-NET is a knife cutting controller with tool direction following control, independently developed by Ruida Technology. It integrates processing for vibrating knives, circular knives, milling cutters, pressure wheels and other tools, along with feeding, circular punching, V-shaped special punching, brush processing, and red light positioning functions.
| Attribute | Specification |
|---|---|
| Model | Mark point vision positioning cutting model |
| Axes | Eight |
| Input and output | 32/28 |
| Software | VCutWorks |
| Operating system | Win7, Win8, Win10, 32-bit or 64-bit |
| Language support | 15 languages including English, Chinese, French, German, Spanish, and more |
| Feeding | Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously |

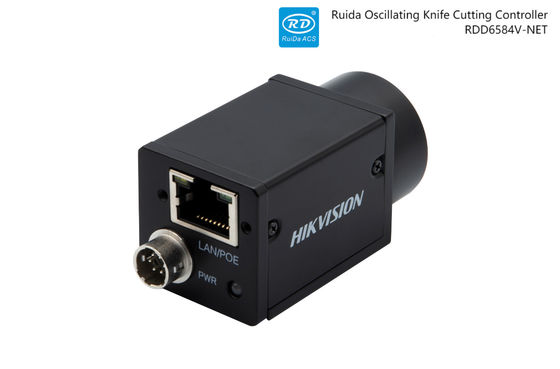

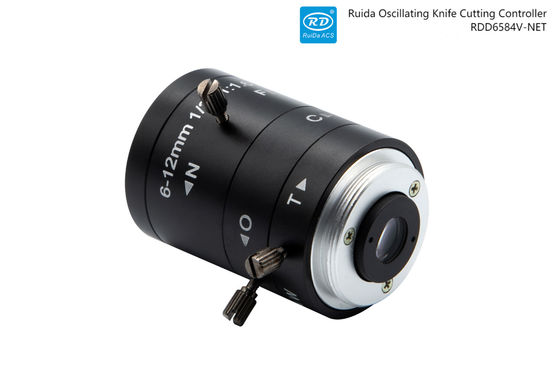

| Camera | Network interface camera, 1.3 and 5 megapixels available |

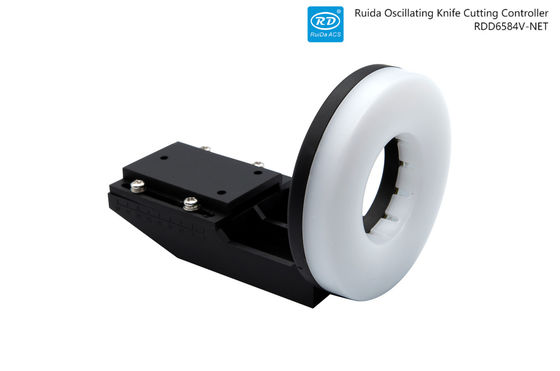

| Light source system | Red and white light source available |
| Cutting function | Mark point vision positioning cutting |
VCutWorks (Free included software)
