| Brand Name: | Ruida |
| Model Number: | RDD6584V-NET |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Model | Mark point vision positioning cutting model |
| Axes | 8 |
| Input and output | 32/28 |

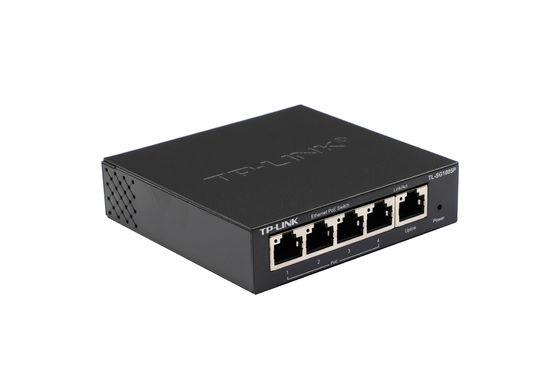

| Communication | Ethernet, USB and WIFI (optional) |

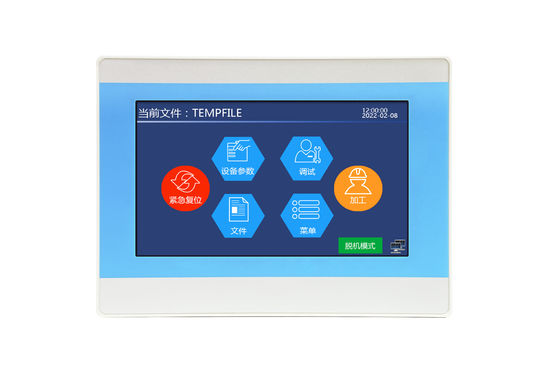

| Panel | 7" touch screen, support parameter modification, static preview and dynamic display of graphics |
| Tool | Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning |
| Feeding | Support X/Y/U axis feeding independently or Y and U axes feeding synchronously |

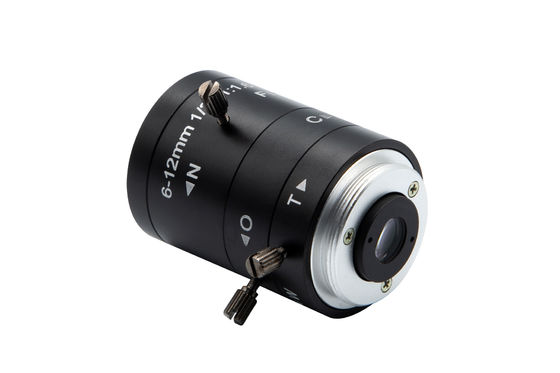

| Camera | Network interface camera, 1.3 and 5 megapixels are available |

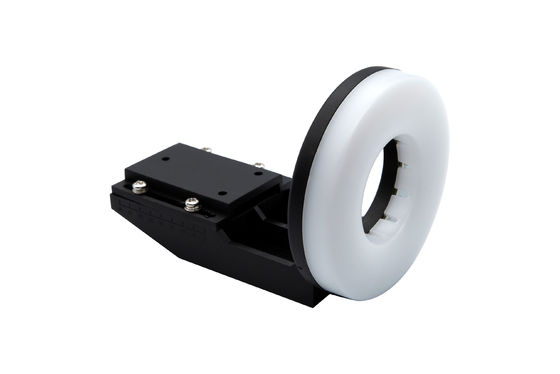

| Light source system | Red and white light source are available |
| Cutting function | Mark point vision positioning cutting |

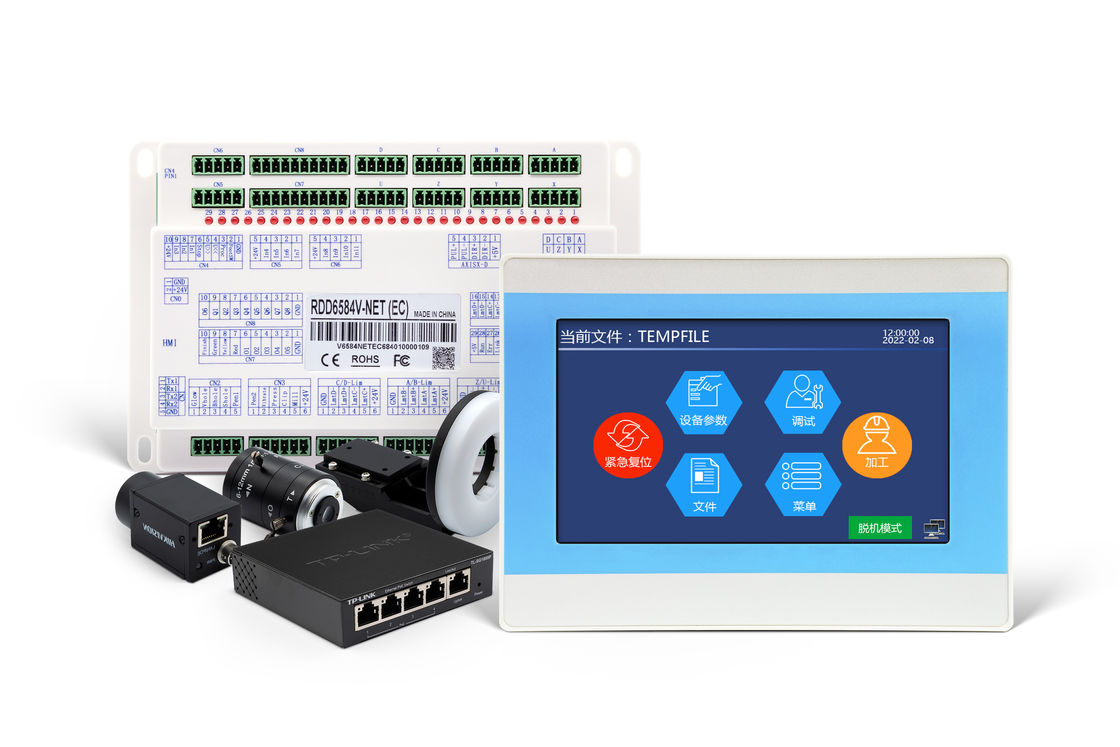

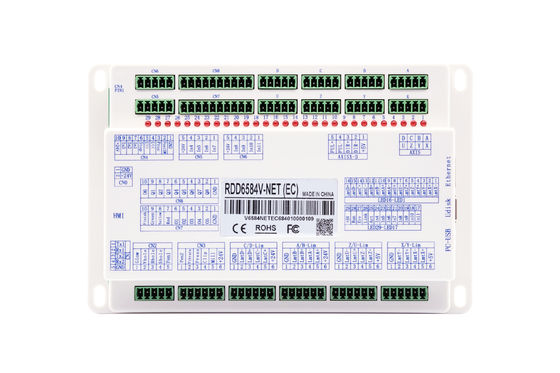

RDD6584V-NET is an independently developed cutting tool controller with cutting edge following control function, integrating the processing of vibrating cutters, circular cutters, milling cutters, rollers and other tools, along with feeding, circular punching, V-shaped punching, brush processing, and red light positioning functions.
Mainly applied in non-metal cutting industries including clothing, sofa manufacturing, digital printing, advertising, curtains, bags, shoes, and related fields.
