| Brand Name: | Ruida |
| Model Number: | RDD6584G-DFM |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

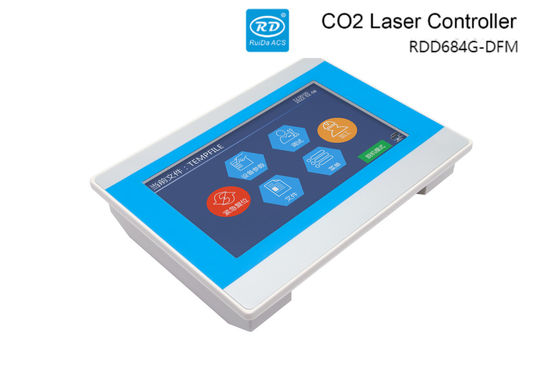

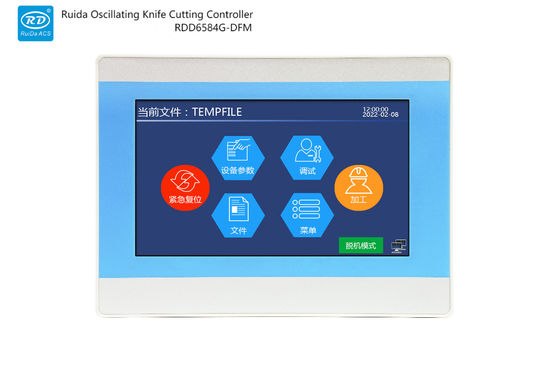

The RDD6584G-DFM is a sophisticated cutting tool controller that offers flexibility and accuracy for various machining tasks. It features cutting edge following control and works with multiple tool types including vibrating cutters, circular cutters, milling cutters, and rollers.
| Model | Single track panoramic large vision |
|---|---|
| Axes | Eight |
| Input/Output | 32/28 |
| Operating System | Win7, Win8, Win10 (32-bit or 64-bit) |
| Software | VCutWorks+RDVisionWorks-Vcut |
| Tool Compatibility | Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning |
| Feeding | Supports X/Y/U axis feeding independently or Y and U axes feeding synchronously |

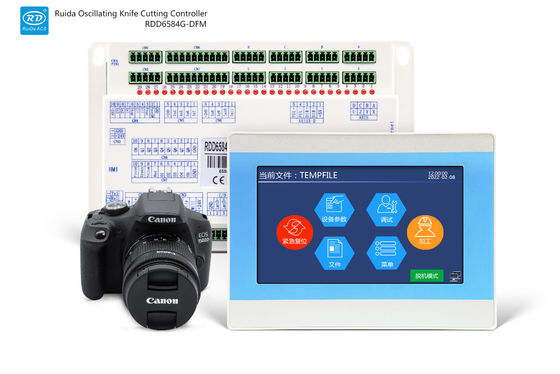

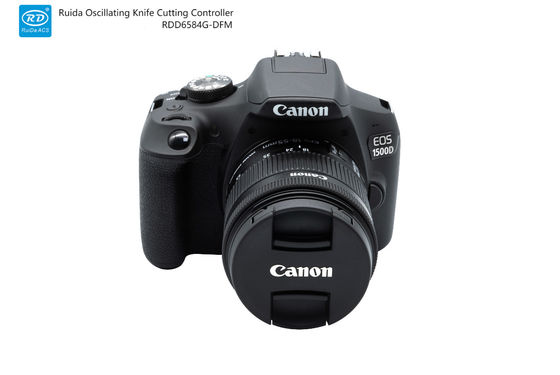

| Camera | 2400W high resolution SLR camera |
| Dimensions | Panel: 203.5×149.5×39mm Mainboard: 212×136×33mm |
| Cutting Function | Large vision contour recognition cutting |
Primarily used in non-metal cutting applications including clothing, furniture, digital printing, advertising, curtains, bags, and footwear manufacturing.
VCutWorks+RDVisionWorks-Vcut
