| Brand Name: | Ruida |
| Model Number: | RDC6685U-DFM |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Brand | RUIDA |
| Axis | 8 |
| Multi-head synchronous | Double coordinates system control, support double head asynchronous and synchronous |
| Laser channel | 4 |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 5'' color screen + keys |
| Feeding | U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Encryption | Support |
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Onboard clock | Support (support the modification of time) |

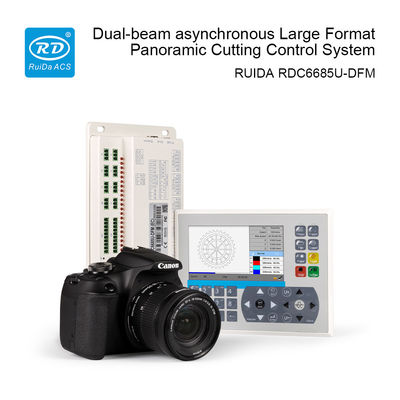

Ruida Technology's RDC6685U-DFM represents a breakthrough in dual-head control technology, specifically engineered for advanced cutting applications. This sophisticated control system delivers intelligent solutions for large-format material processing.
RDVisionWorks, a large format intelligent visual cutting software, can capture the entire machine plane image at once, extract contours, and perform template matching recognition. The software supports full automation of feeding, photography, identification and cutting processes.
| Parameter | Specification |
|---|---|
| Laser source | CO2 glass tube, CO2 RF tube and UV lasers |
| Axis | 8 |
| Laser channel | 4 |
| Multi-head synchronous | Double coordinates system control, support double head asynchronous and synchronous |
| Communication | Ethernet, USB and WIFI (optional) |
| Panel | 5" color screen + keys |
| Feeding | U axis feeding/ Y and U axes feeding synchronously, sheet feeding/large format segmentation feeding |
| Encryption | Support |
| Onboard clock | Support (support the modification of time) |
| Firmware | Remote upgrade of panel and mainboard program |
| Cutting | Large-format visual cutting, Mark point vision and projection cutting |
| Camera | 24 megapixels resolution, 10-18mm and 18-55mm focal length available |
| Engraving | Plane engraving, slope engraving and gray engraving |
| Software | UnionLaser, RDWorksV8, RDVisionWorks |
| Language | 13 languages including English, Chinese, French, Russian, etc. |

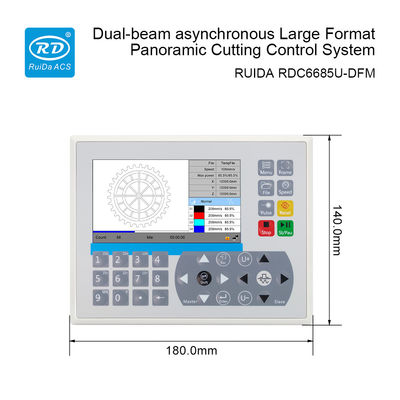

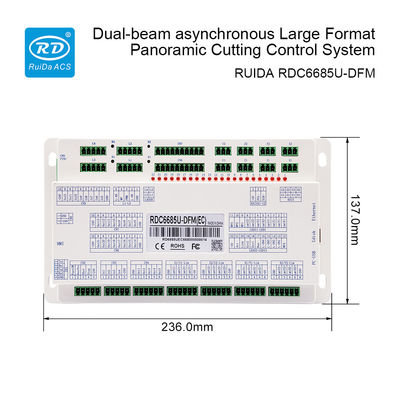

| Size | Panel: 180×140×42.1mm; Mainboard: 236×137×33.5mm |
| Accessories | Wireless handle and RD-WIFI |
