Ruida RDC6585PC-U Laser Controller for CO2 Cutting and Glue Spray

Ruida RDC6585PC-U Laser Controller for CO2 Cutting and Glue Spray

Brand Name: Ruida
Model Number: RDC6585PC-U
MOQ: 1
Price: Negotiable, contact us
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE, FCC, RoHS
Laser:
CO2 Glass Tube And CO2 RF Tube
Nozzle:
Support Solenoid Valve And Piezoelectric Valve
Axes:
16
Laser Channels:
4
Spray Adhesive Channels:
4
Double Head Synchronous:
Support
Installment Encryption:
Support
Onboard Clock:
Not Support
Firmware Upgrade:
Remote Upgrade Of Panel And Mainboard Program
Double Coordinate System Processing:
Support
Glue Spray Process:
Support The Adjustment Of Position And Amount Of Glue Spray, Delay Process Control
Model:
Double Heads Asynchronously
Packaging Details:
Carton
Highlight:

Spray Cutting Integrated Control System

,

Ruida Controller RDC6585PC-U

,

Double Beam Spray Cutting Integrated Controller

Product Description
Ruida Double Beam Large Visual Spray Cutting Integrated Controller RDC6585PC-U
Product Specifications
Laser CO2 glass tube and CO2 RF tube
Nozzle Support solenoid valve and piezoelectric valve
Axes 16
Laser channels 4
Spray adhesive channels 4
Double head synchronous Support
Installment encryption Support
Onboard clock Not support
Firmware upgrade Remote upgrade of panel and mainboard program
Double coordinate system processing Support
Glue spray process Support the adjustment of position and amount of glue spray, delay process control
Model Double heads asynchronously
Product Description

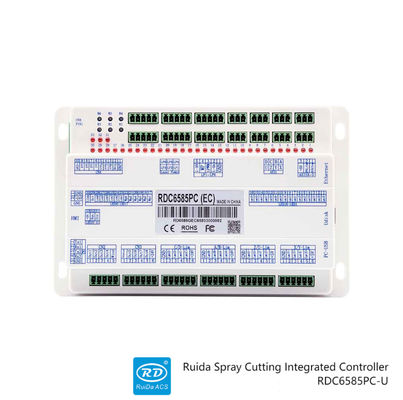

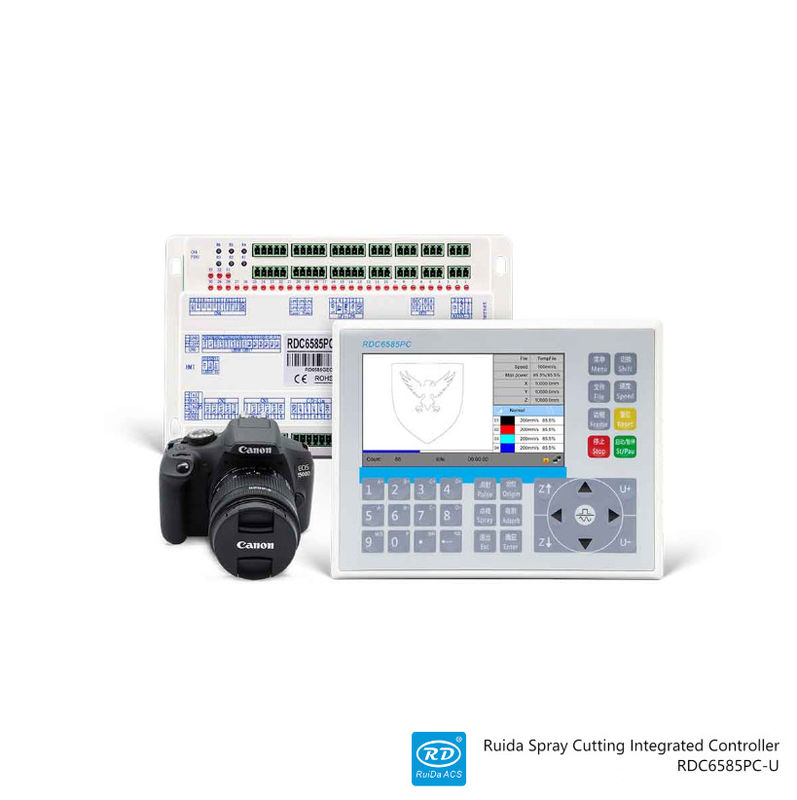

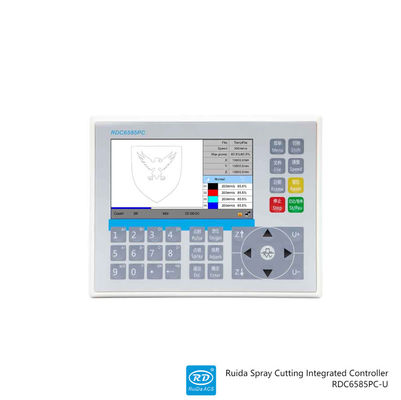

The Ruida Controller RDC6585PC-U features a 5-inch color screen for intuitive operation, combining laser cutting and glue spraying capabilities in one system. It offers comprehensive motion control and multiple I/O interfaces for seamless integration with peripherals.
Key Features
  • Precise PPI control mode for high-accuracy processing
  • Simultaneous laser cutting and glue spraying through different layers
  • Large-format panoramic visual positioning capability
  • Double heads asynchronous processing for increased efficiency
  • Multiple general and special I/O control interfaces
Ruida RDC6585PC-U Laser Controller for CO2 Cutting and Glue Spray 0
Application Areas
Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.
Ruida RDC6585PC-U Laser Controller for CO2 Cutting and Glue Spray 1
Software
Unionlaser
Product Certification
Ruida RDC6585PC-U Laser Controller for CO2 Cutting and Glue Spray 2
Ruida RDC6585PC-U Laser Controller for CO2 Cutting and Glue Spray 3
