| Brand Name: | Ruida |
| Model Number: | RDC6585PC-U |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Laser | CO2 glass tube and CO2 RF tube |
| Nozzle | Support solenoid valve and piezoelectric valve |
| Axes | 16 |
| Laser channels | 4 |
| Spray adhesive channels | 4 |
| Double head synchronous | Support |
| Communication interface | Ethernet, USB |

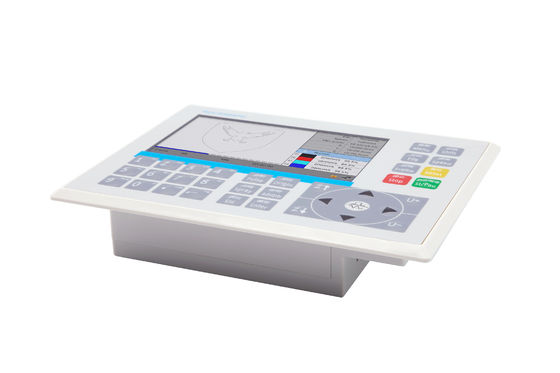

| Panel | 5" color screen + keys |
| Feeding | U axis feeding/ Y and U axes feeding synchronously, ordinary feeding, ultra-wide segmentation feeding |
| Double coordinate system processing | Support |
| Glue spray process | Support the adjustment of position and amount of glue spray, delay process control |
| Model | Double heads asynchronously |
| Installment encryption | Support |
| Onboard clock | Not support |
| Firmware upgrade | Remote upgrade of panel and mainboard program |
| Software | RDWorksV8 |
| Size | Panel: 180×140×42.1mm Mainboard: 211.5×134×33mm |
| Language | 12 languages including English, Chinese, French, German, Spanish, etc. |
| Accessories | Wireless handheld box, RD-APP and RD-WIFI |
