Ruida RDC6585PC Laser Height Controller with Spray Cutting 8-Axis System

Name: Ruida RDC6585PC Laser Height Controller with Spray Cutting 8-Axis System
Brand: Shenzhen Ruida Technology Co., Ltd.
SKU: RDC6585PC-DFM-RD
Price: 410.00 USD
Availability: InStock

Brand Name:	Ruida
Model Number:	RDC6585PC-DFM-RD
MOQ:	1
Price:	Negotiable, contact us
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, FCC, RoHS

Laser:

CO2 Glass Tube And CO2 RF Tube

Nozzle:

Support Solenoid Valve And Piezoelectric Valve

Axes:

Laser Channels:

Spray Adhesive Channels:

Double Head Synchronous:

Support

Language:

12 Languages Including Simplified Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, And Italian

Size:

Panel: L180mm*W140mm*H42.1mm Mainboard: L211.5mm*W134mm*H33mm

Software:

RDWorksV8

Double Coordinate System Processing:

Not Support

Glue Spray Process:

Support The Adjustment Of Position And Amount Of Glue Spray, Delay Process Control

Model:

Large-format Panoramic Visual Positioning And Egde Extraction Function

Packaging Details:

Carton

Highlight:

RDC6585PC-DFM-RD Controller

Spray Cutting Integrated Control System

Integrated Spray Cut Control System

Product Description

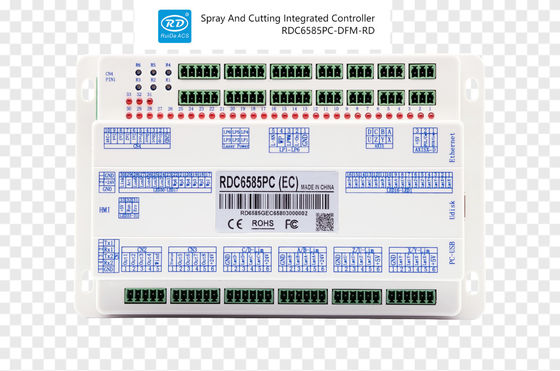

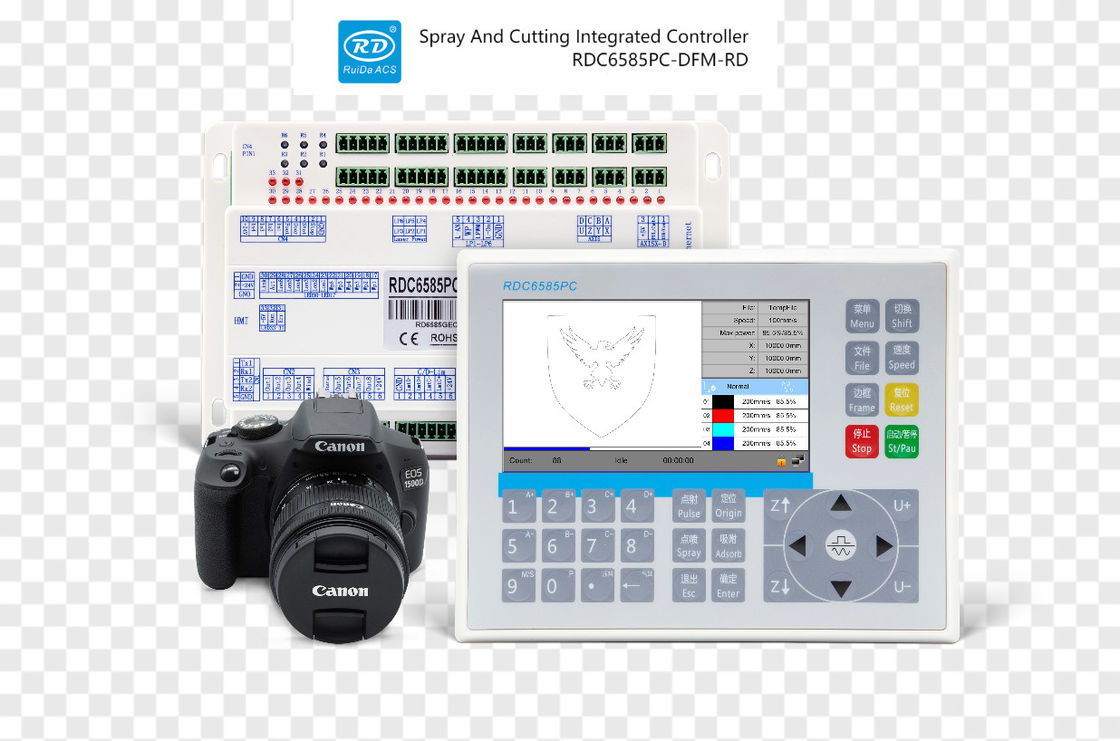

Single Beam Large Visual Spray Cutting Integrated Control System Ruida RDC6585PC-DFM-RD

Product Overview

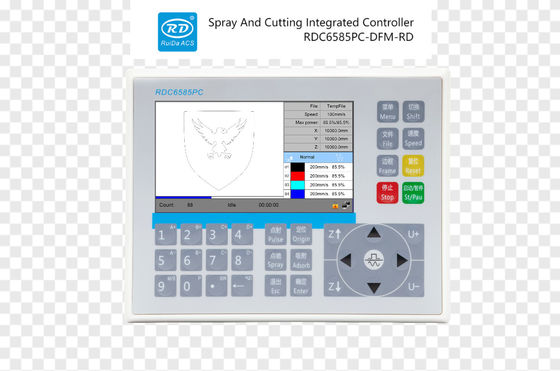

The RDC6585PC system is a new generation integrated spray-cut control system developed by Ruida Technology. Featuring a human-machine operating system based on a 5-inch color screen, it offers a user-friendly interface and enhanced functionality.

Key Specifications

Laser	CO2 glass tube and CO2 RF tube
Nozzle	Support solenoid valve and piezoelectric valve
Axes	8
Laser channels	2
Spray adhesive channels	2
Double head synchronous	Supported
Language support	12 languages including English, Chinese, French, German, Spanish, and more
Software	RDWorksV8

Key Features

User-Friendly Interface: 5-inch color screen provides intuitive operation
Robust Motion Control: Comprehensive capabilities for layered processing
Versatile IO Interfaces: Multiple general and special control interfaces
Flexible Processing: Supports single-channel laser plus glue spraying or multi-belt double-head operations
Layered Processing: Supports two-channel laser and glue inter-moving processing

Applications

Suitable for glue spray, dispensing, drawing lines and laser cutting in clothing, leather, toys, shoes and 3C industries.

Software

RDWorksV8 (Free) + RDVisionWorks
