| Brand Name: | Ruida |
| Model Number: | RDC6585PC-DFM-RD |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

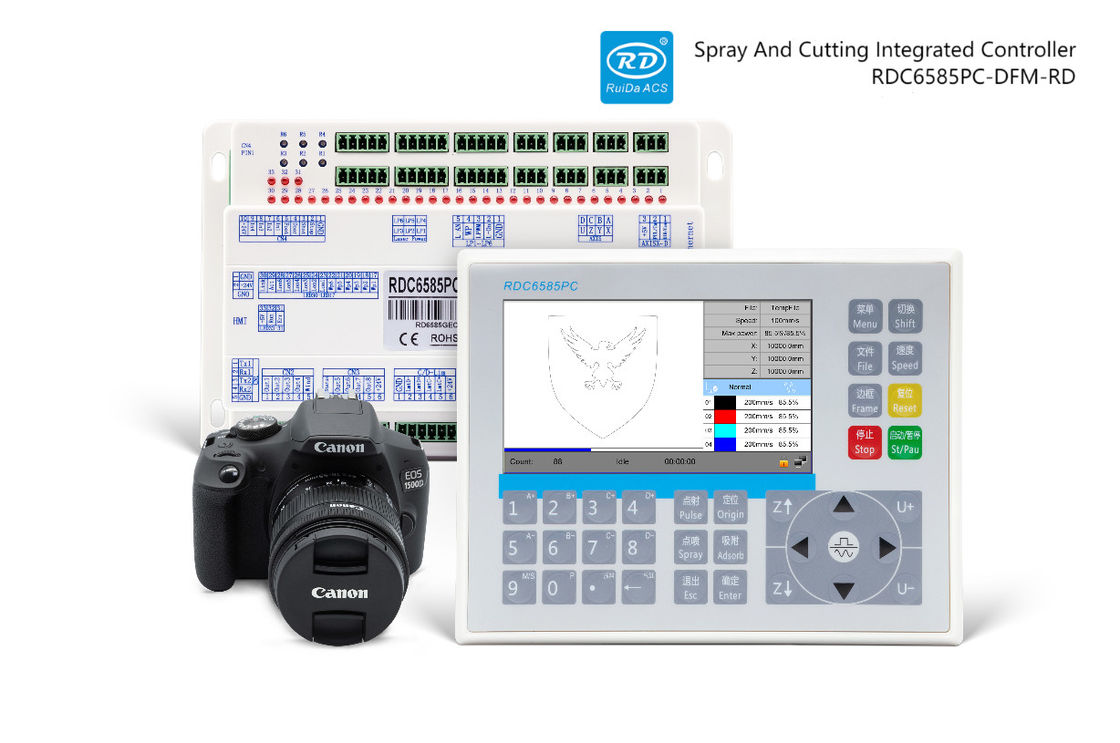

The RDC6585PC-DFM-RD is a new generation integrated spray-cut control system featuring a 5-inch color screen interface with enhanced functionality and user-friendly operation. This controller offers comprehensive motion control capabilities for both laser processing and glue spraying applications.
| Laser Compatibility | CO2 glass tube and CO2 RF tube |
| Nozzle Support | Solenoid valve and piezoelectric valve |
| Axis Control | Eight axes |
| Laser Channels | Two |
| Spray Adhesive Channels | Two |
| Double Head Synchronization | Supported |
| Communication Interfaces | Ethernet, USB |

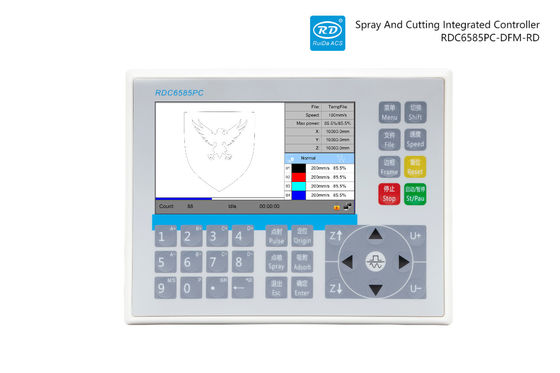

| Control Panel | 5" color screen with keys |
Panel Dimensions: 180mm × 140mm × 42.1mm

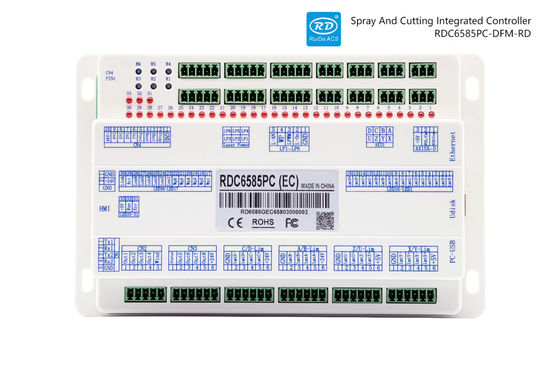

Mainboard Dimensions: 211.5mm × 134mm × 33mm
Supported Languages: 12 languages including English, Chinese, French, German, Spanish, and more
Software: RDWorksV8 (included) + RDVisionWorks
Firmware Upgrade: Remote upgrade capability for both panel and mainboard
Ideal for glue spraying, dispensing, drawing lines and laser cutting applications in:
Wireless handheld box, RD-APP and RD-WIFI modules included
