| Brand Name: | RUIDA |
| Model Number: | RDC6563FG-LITE |
| MOQ: | 50 |
| Price: | Negotiable - Inquire Within |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/day |
| Attribute | Value |
|---|---|
| Brand | RUIDA |

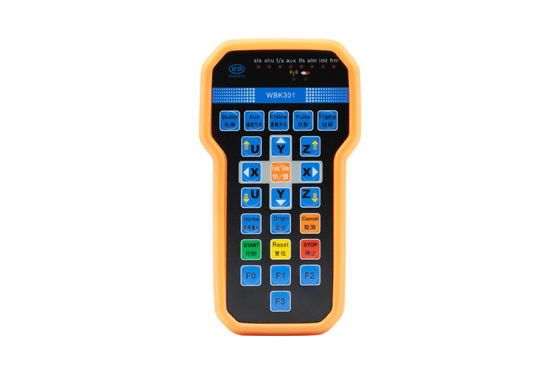

| Communication | Ethernet, USB, wireless handle and WIFI (optional) |
| Axis | 6 |
| Laser source | Fiber and CO2 laser |
| Laser channel | 2 |
| Motion control | Stepping and servo motor |
| Encryption | Support |
| Panel | 5.7" color screen+keys |
| Engraving | Plane engraving |
| Height control | Loop-locked height control; support high motion and response speed follow control and high precision capacitance sensor. |

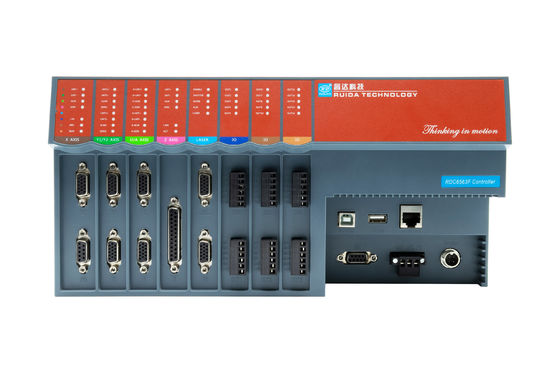

The RDC6563FG-LITE standalone fiber cutting control system, independently developed by Shenzhen Ruida, is recognized for its enhanced hardware stability and superior resistance to high voltage and static interference.
Supports PLT, DXF, AI and other file formats import, display and edit functions. Also supports image file import and processing.
| Parameters | RDC6563FG-LITE |
|---|---|
| Laser source | Fiber and CO2 laser |
| Axis | 6 |
| Laser channel | 2 |
| Motion control | Stepping and servo motor |
| Communication | Ethernet, USB, wireless handle and WIFI (optional) |

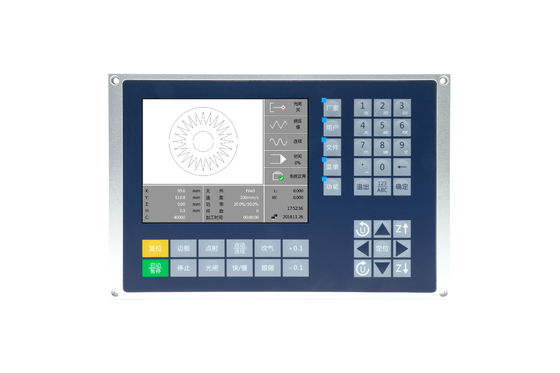

| Panel | 5.7" color screen+keys |
| Feeding | Support automatic feeding |
| Encryption | Support |
| Onboard clock | Support |
| Firmware | Remote upgrade of panel and mainboard program |
| Auxiliary gas | Support multi-channel auxiliary gas control |
| Height control | Loop-locked height control; support high motion and response speed follow control and high precision capacitance sensor. |
| Cutting | Metal and non-metal mixed cutting |
| Engraving | Plane engraving |
| Software | RDCutist, support punching, lead, bridge and micro |
| Language | Simplified Chinese, traditional Chinese and English |
| Size | Panel: L235*W155*H33.5mm Mainboard:L245*W140*H49.5mm |

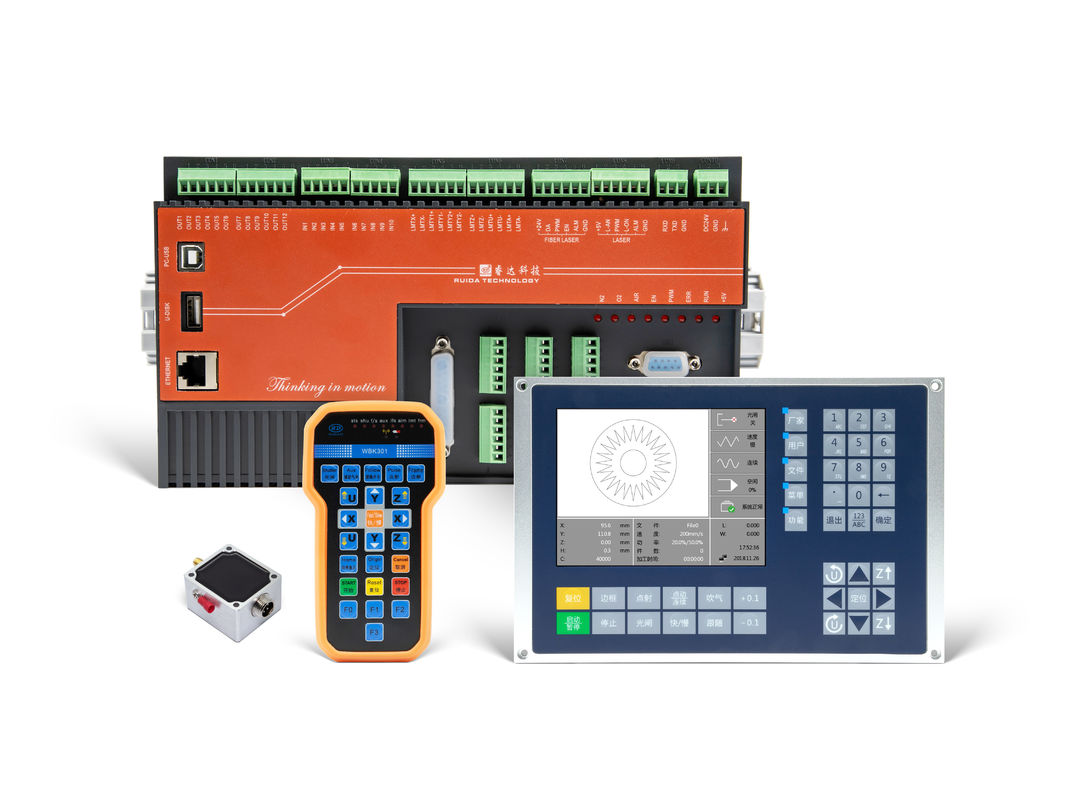

| Accessories | RD-APP, RD-WIFI, Automatic Typesetting Nesting Software |
