| Brand Name: | Ruida |
| Model Number: | RDD6584G |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

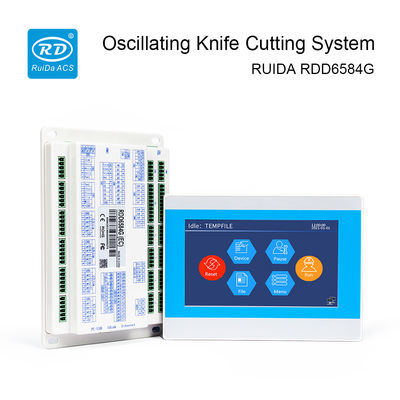

Ruida RD6584 Digital Knife Cutting Controller for Oscillating Knife, Rotary Knife & Cutting Machines
Description Of Ruida Controller RDD6584G
The RDD6584G CNC digital knife cutting controller from Ruida Technology is designed for high-precision oscillating knife, rotary knife, and milling cutter cutting machines.
With intelligent tool direction following control, it supports multi-tool cutting, automatic feeding, circular punching, V-cut punching, marking brush functions, and red light positioning, making it ideal for digital cutting systems used in textile, leather, packaging, advertising, and foam cutting applications.
| Parameter | RDD6584G |
| Model | Ordinary single track |
| Axes | Eight |
| Input and output | 32/28 |
| Communication | Ethernet, USB and WIFI |
| Panel | Seven-inch touch screen, support parameter modification, static preview and dynamic display of graphics |
| Tool | Vibration knife, round knife, milling cutter, press wheel, round punching, V-shaped punching, brush processing, red light positioning |
| Feeding | Support X/Y/U axis feeding independently or Y and U axes feeding synchronously |
| Camera | None |
| Light source system | None |
| Cutting | Ordinary cutting |
| Installation Encryption | Support |
| Onboard clock | Support |
| Firmware upgrade | Remote upgrade of panel and mainboard program |
| Software | VCutWorks |
| Operating system | Win7, Win8, Win10, 32-bit or 64-bit |
| Language | 15 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian, Japanese, Indonesian and Polish |

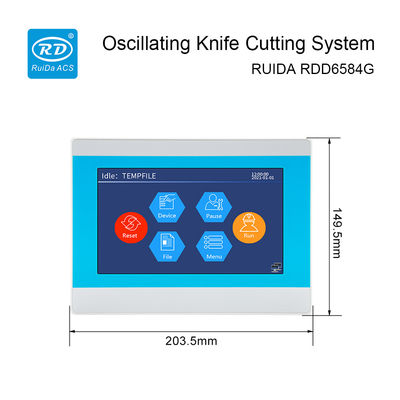

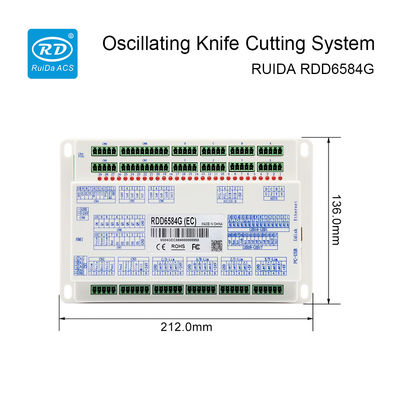

| Size | Panel: L203.5mm*W149.5mm*H39mm Mainboard: L212mm*W136mm*H33mm |
| Accessory | Wireless handheld box, RD-APP and RD-WIFI |
Key Functions
(1)Standalone operation, 256M memory onboard.
(2)Support USB/Ethernet communication and U disk.
(3)High-response of the tool direction following control.
(4)Support 8 axes, 16 dedicated/general inputs and 28 general outputs.
(5)7 "industrial touch screen, support parameter modification, graphic static preview and dynamic display.
(6)Integrate multiple processing methods such as vibrating knife, round knife, milling cutter, pressing wheel,circular punching, V-shaped special punching, brush processing, and red-light positioning.
(7)Support single XY axis processing, double XY asynchronous processing, and double head shifting processing. Support MARK point visual positioning cutting, large-format panoramic visual cutting, projection cutting, etc.
Application Fields
RDD6584G is suitable for cutting soft and semi-rigid materials in many industries:
Garment & Textile
Leather & Footwear
Packaging & Carton
Advertising Materials
Furniture & Upholstery
Foam & Composite Materials
Typical materials:
Fabric, leather, cardboard, foam, EPE, PVC, KT board, rubber, etc.
Software VCutWorks(Free)
Support PLT, DXF, AI, DST and other file formats import, display and edit functions, support image file import and processing
Product certification
All products are certified with CE, RoHS, and FCC standards, ensuring compliance with safety production regulations. These certifications indicate that the products meet stringent safety, health, and environmental protection requirements, making them suitable for use in various applications while prioritizing user safety and environmental responsibility.
Package list
Shipping and Payment
