| Brand Name: | Ruida |
| Model Number: | RDWelder-SW |
| MOQ: | 1 |
| Price: | Negotiable, contact us |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Attribute | Value |
|---|---|
| Laser | Handheld high power continuous fiber laser |
| Galvanometer protocol | XY2-100 |
| Communication interface | RS232 |
| Motion control | Single pendulum of galvanometer |
| Input and output | Support multi-channel general input and output, used for auxiliary gas control |
| AD/DA | Support analog quantity input and output function |
| Language | Simplified Chinese, English |
| Firmware upgrade | Support the upgrade of system by U disk |
| External protection | One channel welding protection input |

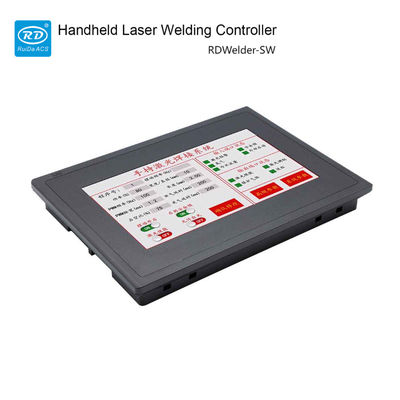

| Size | Panel: L210mm*W150mm*H24mm Mainboard: L155mm*W120mm*H55mm |

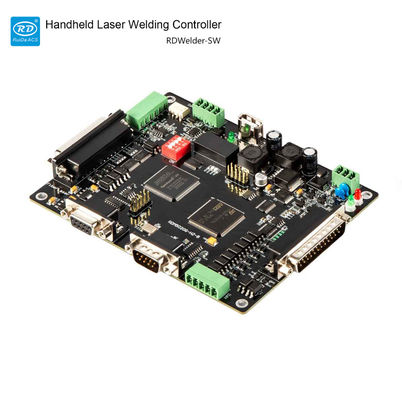

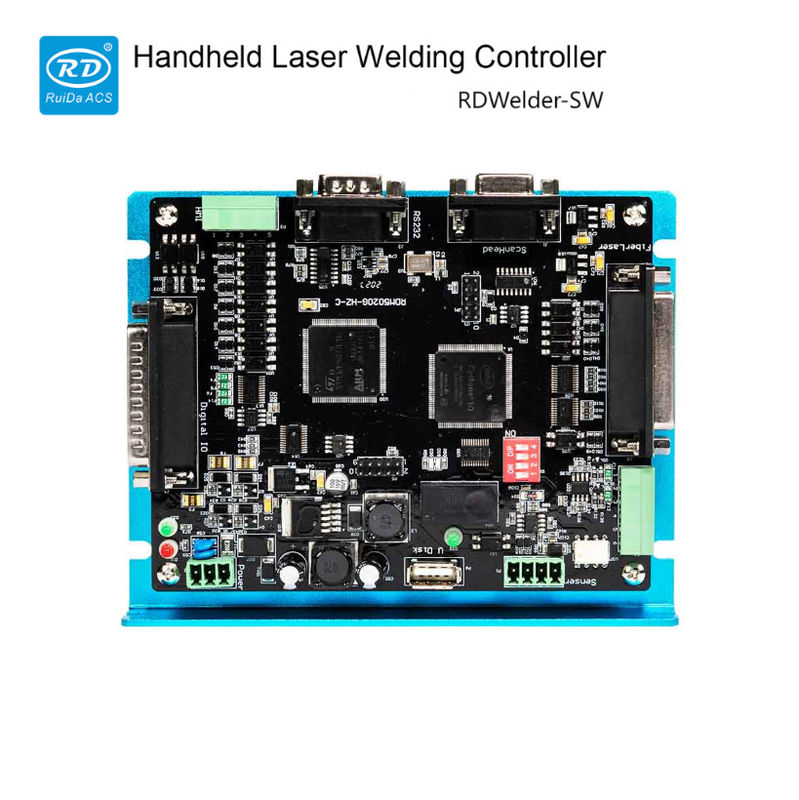

The Ruida Controller RDWelder-SW is a specialized handheld laser welding system designed for precision metal welding applications with advanced features for optimal performance.
| Parameter | RDWelder-SW |
|---|---|
| Laser source | Continuous fiber laser, pulse fiber laser |
| Galvanometer protocol | XY2-100 |
| Communication | RS232 |
| Motion control | Pendulum of galvanometer |
| Input and output | Multi-channel general input/output for auxiliary gas control |
| External protection | One channel welding protection input |
| Control function | Online power/frequency adjustment, external start/stop |
| External alarm input | Laser alarm, cooling system alarm protection |
| AD/DA | Analog quantity input/output function |
| Installment encryption | Supported |
| Onboard clock | Supported |
| Firmware upgrade | System upgrade via USB disk |
| Welding process | Automatic wire feeding, gas activation/closure delay, slow power rise/fall |
| Welding technology | Single pendulum of galvanometer |
| Language | Simplified Chinese, English |
| Size | Panel: 210×150×24mm, Mainboard: 155×120×55mm |
This versatile laser welding system is ideal for precision welding of various metals including aluminum, iron, stainless steel, copper, and carbon steel. It excels in mixed welding applications, particularly for aluminum-copper and aluminum-stainless steel combinations.
